Single Crystal Seeding in Batch Crystallization: A Foundational Guide for Controlled Polymorph and Particle Engineering

Abstract

This article provides a comprehensive exploration of the single crystal seeding approach in batch crystallization, a critical technique for controlling polymorphism, particle size distribution, and crystal quality in pharmaceutical development. It establishes the scientific rationale for seeding by explaining its role in managing secondary nucleation and navigating the metastable zone. A detailed, step-by-step methodological guide is presented, covering seed stock preparation, serial dilution, and protocol implementation for consistent results. The content further addresses common industrial challenges, including the impact of impurities and seed crystal characteristics, and presents optimization strategies. Finally, it validates the approach through comparative performance analyses against unseeded batch processes and explores advanced applications, such as using microgravity-grown seeds, to demonstrate its transformative potential for ensuring drug efficacy and streamlining manufacturing.

The Science of Seeding: Mastering Nucleation for Predictive Crystallization

This application note delineates a robust protocol for investigating secondary nucleation initiated by a single seed crystal in batch cooling crystallization. Within pharmaceutical development, controlling crystallization is paramount for dictating critical particle attributes such as polymorphism and Particle Size Distribution (PSD). The elucidated methodology leverages a novel single-crystal seeding approach to quantitatively measure secondary nucleation rates, providing researchers with a framework to optimize seeding strategies. Data obtained from a model system (Isonicotinamide in ethanol) demonstrates that secondary nucleation, detected via suspension density increase, occurs significantly faster than spontaneous primary nucleation. Furthermore, the protocol reveals a direct correlation between seed crystal size and the subsequent rate of secondary nucleation, enabling precise control over the final product's PSD.

Crystallization is a cornerstone unit operation in the manufacturing of solid-form pharmaceutical doses. It is a highly complex process governed by competing kinetic, thermodynamic, and chemical factors, making control challenging yet critical for ensuring desired product qualities like bioavailability and processability [1]. A principal method for exerting this control is seeding, a technique that dictates when nucleation occurs by inducing secondary nucleation [1] [2].

Secondary nucleation is defined as the formation of new crystalline entities resulting from the presence of parent crystals of the same compound in a supersaturated solution [1]. This phenomenon profoundly influences the final Particle Size Distribution (PSD) and polymorphism of the active pharmaceutical ingredient (API) [1] [2] [3]. A poorly designed seeding protocol can lead to inconsistent batch quality, downstream processing issues, and compromised product performance. This document details a reproducible single-crystal seeding protocol, developed using the Crystalline instrument, which allows for the systematic study of secondary nucleation kinetics, thereby enabling rational design and control of industrial crystallization processes [1] [2].

Theoretical Background: Nucleation Mechanisms

Crystal nucleation is the initial formation of a new, distinct crystalline phase from a supersaturated liquid phase. Nucleation mechanisms are categorized as follows:

• Primary Nucleation: The formation of crystals in the absence of existing crystalline material of its own kind.
  • Homogeneous: Occurs spontaneously in a clear solution without impurities.
  • Heterogeneous: Induced by the presence of foreign surfaces or impurities [1] [2].
• Secondary Nucleation: The formation of new crystals induced by the presence of crystals of the same compound in a supersaturated suspension. This is the dominant mechanism in seeded crystallizations and is typically responsible for generating the bulk of the crystal population in an industrial batch [1] [2] [3].

Activated secondary nucleation, particularly for organic crystals, is understood to be a two-step process [3]:

• Activation: At sufficiently high supersaturation, secondary nuclei form on the surface of the parent seed crystal through imperfect growth.
• Detachment: Agitation or contact provides the energy required to detach these nuclei from the parent crystal surface, allowing them to grow independently in the solution [3].

Experimental Workflow for Single-Crystal Seeding

The following section provides a detailed, step-by-step protocol for measuring secondary nucleation rates using a single seed crystal. The workflow is designed to clearly discriminate between primary and secondary nucleation events.

Workflow Visualization

The diagram below outlines the experimental workflow for studying secondary nucleation.

Step-by-Step Protocol

Step 1: Determine Solubility and Metastable Zone Width (MSZW)

• Objective: To define the operational window for crystallization, bounded by the solubility curve and the metastable limit.
• Procedure:
  • Use a tool like the Crystal16 to generate transmissivity data across a temperature range.
  • Plot the solubility and metastable curves from this data. The area between these curves defines the MSZW [1].
• Critical Parameter: The metastable limit is the point beyond which primary nucleation occurs spontaneously.

Step 2: Select Supersaturation

• Objective: To choose a supersaturation level that promotes secondary nucleation while avoiding primary nucleation.
• Procedure: Select a supersaturation value sufficiently close to the solubility curve, well within the MSZW determined in Step 1 [1].

Step 3: Generate and Characterize Single Seed Crystals

• Objective: To obtain well-defined, characterized parent crystals for seeding.
• Procedure:
  • Generate single crystals from a clear, supersaturated solution.
  • Characterize the crystals, accurately measuring their size using microscopy or calibrated imaging [1].

Step 4: Calibrate Camera for Particle Counting

• Objective: To quantitatively relate the number of particles detected on screen to the actual suspension density.
• Procedure: Calibrate the in-situ camera using a standard such as polystyrene microspheres. This establishes a correlation between the measured particle count (N) and the suspension density (Np) [1].

Step 5: Perform Seeded Experiment and Monitor

• Objective: To initiate and monitor secondary nucleation from a single seed.
• Procedure:
  • Place a clear, supersaturated solution in the Crystalline instrument (2.5-5 ml scale) under constant temperature and agitation.
  • Add a single, characterized seed crystal to the solution.
  • Continuously monitor the number of particles and suspension density using the instrument's transmissivity measurements and particle counting capabilities [1] [2].

Step 6: Calculate Secondary Nucleation Rate

• Objective: To quantify the kinetics of secondary nucleation.
• Procedure: The secondary nucleation rate is derived from the increase in suspension density over time, specifically after the observed delay time following seed addition [1].

Key Experimental Data and Observations

The following tables summarize quantitative findings and critical parameters from the Isonicotinamide case study and related methodologies.

Table 1: Comparative Timeline of Seeded vs. Unseeded Nucleation for Isonicotinamide in Ethanol

Experiment Type	Event	Time to Event (Minutes)	Observed Outcome
Seeded	Addition of single seed crystal	t = 0	Introduction of secondary nucleation sites.
	Detection of suspension density increase (secondary nucleation)	t = 6	Rapid onset of crystal formation induced by the seed [1].
Unseeded	Solution in metastable zone	t = 0	Solution remains clear, awaiting nucleation trigger.
	Detection of suspension density increase (primary nucleation)	t = 75	Spontaneous primary nucleation occurs after a long delay [1].

Table 2: Impact of Key Parameters on Secondary Nucleation

Parameter	Influence on Secondary Nucleation	Experimental Observation
Seed Crystal Size	Directly influences nucleation rate.	Larger single seed crystals induced a faster secondary nucleation rate compared to smaller seeds [2].
Supersaturation Level	Must be within the MSZW to avoid primary nucleation.	Operating close to the solubility curve, but within the MSZW, ensures secondary nucleation is the dominant mechanism [1].
Fluid Dynamics	Affects the detachment of secondary nuclei.	Energy input from agitation is crucial for nucleus detachment; scale-up must consider different fluid dynamics [1] [3].

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Materials and Equipment for Single-Crystal Seeding Studies

Item	Function/Description	Relevance to Protocol
Crystalline Instrument	A platform for crystallization R&D featuring in-situ visual monitoring, particle counting, and transmissivity measurements.	Enables precise control of temperature and agitation, and provides the key data (particle count, transmissivity) for quantifying secondary nucleation at a 2.5-5 ml scale [1].
Model Compound (e.g., Isonicotinamide)	A well-characterized substance used to develop and validate the crystallization protocol.	Serves as a reliable model system (in solvents like ethanol) for establishing the experimental workflow before applying it to novel APIs [1] [2].
Single Seed Crystals	Well-characterized, singular crystals of the target compound used to induce secondary nucleation.	The quality, size, and characterization of the seed are critical independent variables that directly impact the secondary nucleation rate [1] [2].
Polystyrene Microspheres	A calibration standard with known particle size and concentration.	Essential for calibrating the instrument's camera to convert pixel-based particle counts into accurate suspension density measurements [1].

Discussion and Implications

The single-crystal seeding protocol provides a direct method for studying secondary nucleation kinetics in a controlled environment. The data clearly demonstrates the profound efficiency of secondary nucleation over primary nucleation, as evidenced by the significant difference in the onset of crystal formation (6 minutes vs. 75 minutes) [1]. This underscores the critical importance of seeding for controlling crystallization processes in industrial settings.

The finding that larger seed crystals promote a faster secondary nucleation rate [2] offers a tangible parameter for process control. By carefully selecting seed size and loading, scientists can directly influence the number of particles formed after seeding, providing a powerful lever to tailor the final PSD of an API. Furthermore, understanding secondary nucleation as a two-step process involving activation and detachment [3] helps in troubleshooting and optimizing agitation strategies during scale-up.

This methodology moves seeding strategy development from an empirical art to a rational, science-based practice. The ability to measure a secondary nucleation threshold allows for the design of processes that either avoid unwanted nucleation (to prevent fines) or enhance it (to increase yield), ensuring consistent product quality and optimal performance in downstream processing [1].

The defined protocol for single-crystal seeding establishes a robust foundation for understanding and controlling secondary nucleation in batch cooling crystallization. By systematically measuring secondary nucleation rates and thresholds, researchers and drug development professionals can design optimized seeding protocols that ensure the consistent production of APIs with desired solid-state properties and PSD. Integrating this rational approach into crystallization workflow procedures enables faster, more reliable development of industrial crystallization processes, ultimately enhancing the efficiency and robustness of pharmaceutical manufacturing.

The Critical Role of the Metastable Zone Width (MSZW) in Seeding Protocol Design

In the pursuit of high-quality single crystals for pharmaceutical development, controlled batch crystallization is paramount. The metastable zone width (MSZW) represents a critical concept in this process, defining the range of supersaturation levels where a solution is thermodynamically unstable yet does not undergo spontaneous nucleation [4]. For researchers employing a single crystal seeding approach, a precise understanding and determination of the MSZW is not merely beneficial—it is fundamental to designing effective seeding protocols. Operating within this metastable zone allows for controlled crystal growth on introduced seeds while avoiding undesirable secondary nucleation, enabling the production of crystals with tailored size distribution, purity, and polymorphic form [5] [6]. This application note details the integral relationship between MSZW and seeding protocol design, providing researchers with methodologies and tools to optimize their single crystal cultivation.

The Fundamentals of MSZW and Its Impact on Seeding

Supersaturation serves as the driving force for both nucleation and crystal growth [4]. The MSZW defines the boundary between a metastable state, where crystal growth can occur on existing surfaces, and a labile state, where spontaneous nucleation dominates. The width of this zone is not a fixed value for a substance; it is influenced by factors including cooling rate, agitation, solution composition, and the presence of impurities [6] [4].

The primary objective of seeding is to provide a controlled number of growth sites within a supersaturated solution. The success of this strategy hinges on maintaining supersaturation levels within the metastable zone. If the supersaturation is too low (close to the saturation curve), seed crystals may dissolve or exhibit negligible growth. Conversely, if supersaturation ventures into the labile zone (exceeding the MSZW), spontaneous nucleation will occur, resulting in a high population of fine crystals that compete with seeds for the available solute, leading to a broad and often undesirable crystal size distribution (CSD) [5]. Research indicates that relying solely on a cooling strategy may only reduce nucleated crystals by approximately 15%, whereas strategies informed by a knowledge of the MSZW, such as temperature cycling, can reduce this number by over 80% [5].

Table 1: Key Factors Influencing Metastable Zone Width (MSZW)

Factor	Effect on MSZW	Implication for Seeding
Cooling Rate	Faster cooling narrows the observed MSZW [4].	Requires more precise temperature control to avoid accidental nucleation.
Agitation	Increased mixing can narrow the MSZW.	Necessitates consistent stirring rates during experimentation and process scale-up.
Impurities	Can either widen or narrow the MSZW depending on their action [7].	Must be characterized as they can drastically alter the operating window.
Solution History	Previous crystallization events can influence nucleation kinetics.	Standardized dissolution protocols are required for reproducible MSZW determination.

Quantitative Determination of MSZW

Accurate experimental determination of the MSZW is a prerequisite for rational seeding protocol design. Modern approaches leverage Process Analytical Technology (PAT) to move beyond traditional visual methods.

PAT-Based Experimental Protocol

The following protocol for determining MSZW and solubility using in-situ PAT tools can be completed in less than 24 hours, a significant improvement over conventional methods [4].

Objective: To determine the solubility curve and metastable zone width of an Active Pharmaceutical Ingredient (API) in a selected solvent system. Materials:

• API (e.g., Paracetamol [4])
• Solvent (e.g., Isopropanol [4])
• Laboratory-scale crystallizer equipped with temperature control and overhead stirring
• In-situ Fourier Transform Infrared (FTIR) spectrometer
• In-situ Focused Beam Reflectance Measurement (FBRM) probe
• Automated sampling system (optional)

Procedure:

• Solution Preparation: Prepare a saturated solution of the API in the solvent at an elevated temperature (e.g., 45°C for Paracetamol in Isopropanol). Stir until complete dissolution is achieved, ensuring no solid phase remains.
• Solubility Measurement (Heating Cycle):
  • Cool the solution to a temperature where a substantial amount of crystals are present (e.g., -2°C to -8°C).
  • Initiate a slow, linear heating ramp (e.g., 0.01 to 0.05 K/min) while continuously monitoring the solution with FTIR and FBRM.
  • The FTIR spectrometer tracks specific vibrational peaks of the API. The point at which the API peak intensity stabilizes, indicating all crystals have dissolved, corresponds to the saturation temperature at that concentration [4]. Convert the FTIR spectra to concentration values using a pre-established calibration model.
  • Repeat this process at different initial concentrations to map the entire solubility curve (C* vs. T*).
• MSZW Measurement (Cooling Cycle):
  • Start with a completely dissolved, undersaturated solution at a known temperature above the saturation point.
  • Initiate a controlled linear cooling ramp (e.g., 0.5, 1.0, and 1.5 K/min) while monitoring with FBRM and FTIR.
  • The FBRM probe measures the chord length count in the solution. A sudden, rapid increase in the total chord length count signifies the onset of nucleation [4].
  • Record the temperature at this nucleation event for each cooling rate. The difference between the saturation temperature and this nucleation temperature is the MSZW for that specific cooling rate.

Data Analysis:

• Plot solubility concentration against temperature to establish the baseline saturation curve.
• Plot the nucleation temperature against the cooling rate to visualize the MSZW dependence. The data can be fitted to theoretical models (e.g., Nyvlt, Sangwal, Kubota) to extract nucleation kinetics and thermodynamic parameters [4].

Figure 1: Workflow for the quantitative determination of solubility and MSZW using PAT tools.

Table 2: Comparison of PAT Tools for MSZW Determination

Analytical Tool	Measurement Principle	Key Output for MSZW	Advantages
Fourier Transform Infrared (FTIR)	Chemical bonding vibration	Solution concentration in real-time; direct solubility point detection [4].	Provides quantitative concentration data; identifies polymorphic forms.
Focused Beam Reflectance Measurement (FBRM)	Back-scattered laser light from particles	Sudden increase in particle count indicates nucleation onset [4].	Highly sensitive to the moment of nucleation; provides particle count and trend.
Particle View Imaging (e.g., Crystalline PV/RR)	Direct in-situ digital imaging	Visual confirmation of first crystal appearance; crystal shape and size analysis [8].	Provides direct visual evidence; distinguishes crystals from bubbles or oil.

Designing Seeding Protocols Based on MSZW

With a accurately determined MSZW, seeding protocols can be designed to maximize seed crystal growth and minimize secondary nucleation. The target supersaturation for seed introduction should be within the upper region of the metastable zone, but with a sufficient safety margin below the nucleation curve to account for process fluctuations [6].

Seeding Strategy Decision Workflow

The following diagram outlines the key decisions in designing a seeding protocol informed by MSZW data.

Figure 2: Decision workflow for designing an MSZW-informed seeding protocol.

Advanced Seeding Techniques

Several advanced seeding techniques can be employed, with the choice depending on the crystallization goals:

• Microseeding: This involves transferring a very small number of microscopic seed crystals, often via a needle touched to a seed stock slurry [9]. It is highly effective for generating a controlled number of single crystals. The process can be iterative; crystals obtained from one round of microseeding can be crushed to create a new, improved seed stock for subsequent rounds, progressively enhancing crystal size and quality [9].
• Matrix Microseeding: A highly efficient robotic method where a seed stock is made from all solid material in a drop and is then used to seed an entire plate of new conditions. This approach can rapidly transform microcrystals appearing in a phase separation into large, diffraction-quality crystals in a single round of optimization [9].
• Streak Seeding: A manual technique where an animal whisker or fine needle is stroked across a parent crystal to pick up invisible seeds and then drawn across the surface of a new metastable solution. Crystals will typically grow along the streak line [9].

The Scientist's Toolkit: Essential Research Reagents and Solutions

Table 3: Key Research Reagent Solutions for MSZW and Seeding Studies

Item / Reagent	Function / Application	Example / Specification
Model Compound (e.g., Paracetamol)	A well-characterized API for method development and validation of MSZW protocols [4].	High-purity (>98%) material suitable for crystallization studies.
Seed Crystals	Provide controlled growth sites to suppress spontaneous nucleation.	Size-classified crystals (e.g., 0.154 mm sieve fraction) [7] or microseed stocks [9].
Process Analytical Technology (PAT)	In-situ monitoring of concentration, particle count, and morphology.	FTIR, FBRM, and Particle View Imaging (PV) systems [8] [4].
Crystallization Platform	Automated control of temperature and stirring for high-fidelity experimentation.	Systems like Crystalline PV/RR offering milliliter-scale work, temperature range -25°C to 150°C, and integrated analytics [8].
Software with AI Analysis	Automated image scoring, data management, and optimization.	Platforms like ROCK MAKER with MARCO for machine learning-based drop scoring and experiment design [10].

The meticulous determination of the metastable zone width is a cornerstone of effective seeding protocol design in batch crystallization research. By leveraging modern Process Analytical Technologies, researchers can move beyond empirical guesswork to a quantitative and predictive understanding of their crystallization systems. Integrating MSZW data with carefully selected seeding strategies—such as microseeding or matrix microseeding—enables precise control over the crystallization process, ultimately yielding the high-quality single crystals required for advanced pharmaceutical development and structural analysis. This science-based approach is critical for optimizing crystal size distribution, purity, and form, ensuring robust and scalable processes.

The control over the solid-state form of an Active Pharmaceutical Ingredient (API) is a critical determinant of drug product quality, impacting stability, solubility, and bioavailability. This application note explores the pivotal role of seeding protocols in directing polymorphic outcomes during batch crystallization. Using indomethacin as a model compound, we demonstrate that a rational single-crystal seeding approach can accelerate the transformation of a metastable α-form to the stable γ-polymorph, reducing the transformation time from 48 to 4 hours. Furthermore, the particle size distribution (D50) was refined from 7.33 ± 0.38 μm in unseeded experiments to 5.61 ± 0.14 μm with seeding. These findings are framed within a broader thesis on single-crystal seeding research, providing validated methodologies for controlling polymorphism and particulate properties in pharmaceutical development.

In pharmaceutical development, polymorphism—the ability of a solid to exist in more than one crystalline form—presents both a challenge and an opportunity. Different polymorphs of the same API can exhibit vastly different physical and chemical properties, including solubility, dissolution rate, and chemical stability, which directly impact drug product performance and safety. The prevalence and importance of polymorphism in pharmaceutical compounds are well-recognized, making it crucial to prepare and select the optimal solid form early in drug discovery and development [11].

Seeding is a common and powerful technique to control crystallization by dictating when nucleation occurs through the induction of secondary nucleation. The presence of seed crystals in a supersaturated solution provides a template for crystal growth, influencing the resulting polymorphism, particle size distribution (PSD), and downstream particle properties [1]. This application note provides detailed protocols and data for implementing a single-crystal seeding strategy within a batch crystallization process, using indomethacin as a model BCS Class II drug to demonstrate how the starting seed determines final API properties.

Research Reagent Solutions and Materials

Table 1: Essential materials and reagents for polymorph-controlled crystallization

Item	Function/Description
Indomethacin (γ-form)	Model Active Pharmaceutical Ingredient (API); exists in multiple polymorphic forms (α, β, γ, δ, ε, ζ, η) with the γ-form being thermodynamically stable [12].
Organic Solvent (e.g., Acetone)	Solvent for API dissolution; indomethacin is freely soluble in organic solvents like acetone [12].
Aqueous Antisolvent (e.g., Water)	Antisolvent for Liquid Antisolvent (LAS) precipitation; generates high supersaturation leading to fast nucleation [12].
Stabilizers/Excipients (e.g., Poloxamer, HPMC, PVP)	Prevent particle growth and agglomeration by steric or electrostatic stabilization; critical for long-term suspension stability [12].
Single Seed Crystals (γ-form)	Pre-characterized crystals of the target polymorph used to template secondary nucleation and control the solid-state form of the final product [1].

Experimental Protocols and Methodologies

Single Crystal Seeding and Secondary Nucleation Workflow

The following protocol details the steps for a rational seeding approach to control polymorphism, based on a methodology that allows for the study of secondary nucleation.

• Determine Solubility and Metastable Zone Width (MSZW): Generate the solubility and metastability curves for your API-solvent system using transmissivity data. The MSZW defines the crystallization window where secondary nucleation can be measured without unwanted spontaneous primary nucleation [1].
• Select Supersaturation: Choose a supersaturation level sufficiently close to the solubility curve to avoid primary nucleation and allow for accurate measurement of secondary nucleation [1].
• Generate and Characterize Single Seed Crystals: Produce single crystals of the desired polymorph (e.g., the stable γ-form of indomethacin). Characterize their size and morphology, as the secondary nucleation rate is dependent on seed crystal size [1].
• Calibrate the Imaging System: Calibrate the in-situ camera using polystyrene microspheres to calculate suspension density from the particle count on the screen [1].
• Seed the Crystallization: Add a single, well-characterized parent seed crystal to a clear, supersaturated, and agitated solution maintained at a constant temperature [1].
• Monitor Secondary Nucleation: Use in-situ visual monitoring and particle counting to track the increase in suspension density. Secondary nucleation is indicated by a measurable increase in crystal count after a specific delay time following seed addition [1].

Liquid Antisolvent (LAS) Precipitation with Seeding

This protocol combines the seeding strategy with a bottom-up particle engineering technique to achieve both polymorphic control and desired particle size.

• Dissolve API: Dissolve the poorly water-soluble drug (e.g., indomethacin) in a suitable organic solvent (e.g., acetone) in which it is highly soluble [12].
• Prepare Antisolvent: Prepare an aqueous phase containing a stabilizer or surfactant (e.g., Poloxamer 407 or HPMC) to prevent particle agglomeration and growth [12].
• Precipitate Particles: Mix the API solution with the miscible antisolvent to generate a high supersaturation level, resulting in fast nucleation and precipitation of micro-/nanoparticles. Initially, a metastable form (e.g., the α-form of indomethacin) may nucleate [12].
• Add Seeds: Introduce pre-characterized seeds of the target stable polymorph (e.g., γ-indomethacin) to the suspension. The time point of seed addition is critical [12].
• Monitor Transformation: The seeds act as a template, driving and accelerating the solid-state form transformation from the metastable to the stable polymorph. The rate of transformation is influenced by the presence of excipients [12].
• Isolate Product: Once the transformation is complete, isolate the suspension to dryness by filtering, freeze-drying, or spray-drying to prevent further particle growth during storage [12].

Data Presentation and Analysis

Impact of Seeding on Crystallization Kinetics and Product Properties

Table 2: Quantitative data demonstrating the effect of seeding on indomethacin crystallization. Data adapted from [12].

Experimental Condition	Polymorphic Transformation Time (h)	Final Particle Size, D50 (μm)	Key Observations
Unseeded LAS Precipitation	48.0	7.33 ± 0.38	Metastable α-form initially nucleates; slow transformation to stable γ-form.
Seeded LAS Precipitation	4.0	5.61 ± 0.14	Seeds act as a template, drastically accelerating transformation to γ-form and refining PSD.
Seeds (used in experiment)	Not Applicable	17.10 ± 0.20	The particle size distribution of the seeds is a critical process parameter.

Excipients in Bottom-Up Particle Engineering

Table 3: Common excipients used to stabilize API particles in bottom-up approaches, all of which are also used in commercially available long-acting injectables (LAIs) [12].

Method	Excipient	API Example
LAS Precipitation	Poloxamer 188, Poloxamer 407	Taxifolin, Bicalutamide
LAS Precipitation	Hydroxypropyl Methyl Cellulose (HPMC)	Bicalutamide, Itraconazole
LAS Precipitation	Polyvinylpyrrolidone (PVP)	Felodipine
LAS Precipitation	Polyethylene Glycol (PEG)	Ascorbyl Palmitate
LAS Precipitation	Tween 80	Sirolimus
Evaporative Precipitation	PVP K15, Poloxamer 407	Carbamazepine

Discussion

The data unequivocally demonstrates that the properties of the starting seed crystal are a primary determinant of the final API properties. The implementation of a single-crystal seeding protocol within a Liquid Antisolvent (LAS) precipitation process enables simultaneous control over two critical quality attributes: polymorphic form and particle size distribution (PSD).

The dramatic reduction in polymorphic transformation time from 48 hours to just 4 hours with seeding underscores the role of seeds in facilitating a direct and efficient route to the thermodynamically stable product. This process enhancement is not only energy-efficient but also reduces the risk of contamination associated with alternative top-down methods like milling [12]. The refinement of the final PSD (D50) from 7.33 μm to 5.61 μm further highlights that seeds act as a template, guiding the crystallization process to yield a more consistent and desirable particle morphology [12] [1].

The interplay between seeds and excipients is crucial. Stabilizers like Poloxamer and HPMC play a dual role: they control particle growth and agglomeration during the LAS precipitation step and also influence the kinetics of the seed-directed polymorphic transformation [12]. Therefore, the development of a robust crystallization process requires a holistic approach that optimizes both the seeding protocol and the formulation composition.

Controlling the solid-state landscape of an API is non-negotiable in modern pharmaceutical development. This application note provides a validated framework for employing a single-crystal seeding strategy to master this challenge. The protocols and data presented confirm that the conscious selection and application of a well-characterized seed is the most effective lever to ensure the consistent production of the target polymorph with a defined particle size distribution. By integrating this seeding methodology into bottom-up precipitation techniques like LAS, researchers and drug development professionals can achieve a superior level of control, enhancing both the efficiency of the manufacturing process and the quality of the final drug product.

In the field of batch crystallization research, the targeted synthesis of specific polymorphs remains a significant challenge. The interplay between thermodynamics and kinetics dictates which polymorphic form nucleates and grows, with profound implications for product properties in industries such as pharmaceuticals. A single crystal seeding approach provides a powerful method to exert control over this process, steering the outcome toward either the metastable or stable polymorph as required. This application note details the theoretical principles and practical protocols for leveraging seeding to target desired polymorphs, framed within the context of classical nucleation theory and experimental kinetics.

The core principle hinges on the difference in critical free energy of nucleation (( \Delta Gc^* )) between polymorphs. According to Classical Nucleation Theory (CNT), the nucleation rate is exponentially dependent on ( \Delta Gc^* ), which is itself a function of supersaturation and interfacial energy [13]. For a pair of polymorphs, the form with the lower ( \Delta G_c^* ) at a given supersaturation will nucleate first. Seeding deliberately introduces a crystalline template of the desired form, bypassing the stochastic primary nucleation event and promoting the proliferation of that specific polymorph via secondary nucleation [2].

Theoretical Foundation: Thermodynamic vs. Kinetic Control

The Role of Supersaturation and Interfacial Energy

The competition between polymorphs is governed by the relationship between their inherent properties—the ratio of their equilibrium solubilities (( C^{}_{me}/C^{}{st} )) and the ratio of their interfacial energies (( \gamma{st}/\gamma{me} ))—and the applied supersaturation (( S )), defined with respect to the stable form (( S{st} = C/C^{*}_{st} )) [13].

The critical free energy of nucleation (( \Delta Gc^* )) from CNT is given by: [ \Delta Gc^* = \frac{16\pi Na \gamma^3 vm^2}{3k^2T^2ln^2S} ] where ( \gamma ) is the interfacial energy, ( v_m ) is the molecular volume, ( k ) is Boltzmann's constant, ( T ) is temperature, and ( S ) is supersaturation [13].

Low supersaturation typically favors the nucleation of the stable polymorph, even if its interfacial energy (( \gamma{st} )) is higher. This is because the supersaturation with respect to the metastable polymorph (( S{me} = S{st}/(C^{*}{me}/C^{}_{st}) )) becomes vanishingly small, drastically increasing its ( \Delta G_c^ ) [13]. Conversely, high supersaturations can kinetically favor the metastable polymorph, provided its interfacial energy is significantly lower (( \gamma{me} < \gamma{st} )) [13].

Table 1: Key Intrinsic Properties Influencing Polymorph Selection

Property	Description	Typical Range for Polymorph Pairs
Solubility Ratio (( C^{}_{me}/C^{}_{st} ))	Ratio of the equilibrium solubility of the metastable form to the stable form.	Rarely exceeds 2.0 for 95% of known pairs [13].
Interfacial Energy Ratio (( \gamma{st}/\gamma{me} ))	Ratio of the interfacial energy of the stable form to the metastable form.	Reported values range from 1.2 to ~4.0 [13].
Bulk Free Energy Difference (( \Delta G_{i \to j} ))	Free energy difference between a stable polymorph (i) and a metastable one (j).	Often < 5-6 kJ mol⁻¹; can be higher for conformational polymorphs [13].

The Seeding Mechanism: Single Nucleation and Proliferation

The strategic power of seeding is explained by a two-step mechanism:

• Single Nucleation Event: A single crystal of the target polymorph is introduced into a supersaturated solution.
• Secondary Nucleation Proliferation: This seed crystal acts as a template, promoting the rapid generation of numerous secondary nuclei of the same polymorph. This can occur through mechanisms like crystal breeding, where a weakly bound crystallite forms on the seed surface and detaches to become a new crystal [13] [2].

This process ensures that the first nucleus formed is of the desired polymorph, and this form then proliferates to consume most of the crystallizable mass in the crystallizer [13]. This methodology effectively bypasses the intrinsic nucleation competition between polymorphs, allowing for direct control over the solid form.

Experimental Protocols

Protocol: Seeding to Target a Metastable Polymorph

This protocol is designed for the selective crystallization of a metastable polymorph using a single crystal seeding approach, based on the secondary nucleation mechanism [2].

Objective: To obtain a batch of pure metastable polymorph from a supersaturated solution.

Materials:

• Active Pharmaceutical Ingredient (API)
• Appropriate solvent (e.g., Isopropanol)
• Temperature-controlled crystallizer with agitation (e.g., Crystalline instrument) [2]
• Inverted microscope with camera (e.g., Olympus CKX41) [14]
• Glass cuvettes (0.4 - 5 ml) [14] [2]

Procedure:

• Generate Supersaturated Solution:
  • Dissolve the API in the solvent at an elevated temperature to create a clear, undersaturated solution.
  • Cool the solution to the target crystallization temperature (e.g., 25°C) with constant agitation. Ensure the final concentration lies within the metastable zone of the target polymorph, typically at a high supersaturation to favor its kinetics [13].

• Prepare Seed Crystal:

  • Obtain a single, well-characterized crystal of the metastable polymorph, grown previously by slow evaporation or cooling [14].
  • For needle-like crystals with high aspect ratios, carefully cut the seed with a blade to a suitable size to prevent it from growing out of the microscope's field of view. Discard any seeds that show evident defects after cutting [14].

• Seed the Solution:

  • Manually transfer a single prepared seed crystal into a glass cuvette.
  • Completely fill the cuvette with the warm, filtered supersaturated solution and seal it [14].

• Eliminate Superficial Defects (Optional but Recommended):

  • Place the sealed cuvette in a temperature-controlled cell.
  • Partially dissolve the seed crystal by circulating hot water (e.g., 40°C) for a short period. This step helps eliminate superficial defects that could induce unwanted nucleation.
  • Lower and hold the temperature constant at the target crystallization temperature (e.g., 25°C) [14].

• Monitor Growth and Secondary Nucleation:

  • Use the in-situ microscope and camera to monitor the growth of the seed crystal and the subsequent appearance of new crystals in the solution. Images should be collected at regular intervals (e.g., every 10 seconds) [14].
  • The suspension density will increase significantly shortly after seed addition (e.g., within 6 minutes), indicating successful secondary nucleation initiated by the seed crystal [2].

• Harvest and Characterize:

  • Once crystal growth is complete, isolate the solid product by filtration.
  • Characterize the batch using techniques such as X-ray Powder Diffraction (XRPD) to confirm the exclusive presence of the metastable polymorph.

Quantitative Basis for Polymorph Selection

The following table summarizes experimental data from model systems, illustrating how intrinsic properties and conditions influence polymorphic outcomes.

Table 2: Experimental Growth Kinetics and Properties of Polymorphs in Model Systems

Compound / Polymorph	Relative Stability & Solubility	Interfacial Energy (γ)	Reported Growth Kinetics
Tolfenamic Acid (TFA-I) [14]	Stable form; Solubility in IPA: 0.0039 molar fraction	Not reported	Grows slower than metastable forms TFA-II and TFA-IX at all concentrations tested.
Tolfenamic Acid (TFA-II) [14]	Metastable (+0.2 kJ mol⁻¹); Solubility: 0.0043	Not reported	Grows fastest at all solution concentrations.
Tolfenamic Acid (TFA-IX) [14]	Metastable (+0.5 kJ mol⁻¹); Solubility: 0.0048	Not reported	Kinetically competitive with TFA-II; growth rate increases with driving force.
Glycine (β-polymorph) [13]	Metastable; Solubility Ratio (C_me/C_st): 1.45	5.7 - 8.4 mJ m⁻²	N/A
Glycine (α-polymorph) [13]	Stable	11.5 - 22.2 mJ m⁻²	N/A
d-Mannitol (Metastable) [13]	Metastable; Solubility Ratio: 1.40	1.8 mJ m⁻²	N/A
d-Mannitol (Stable) [13]	Stable	3.2 mJ m⁻²	N/A

The Scientist's Toolkit: Essential Research Reagents and Materials

Table 3: Key Research Reagent Solutions and Materials

Item	Function / Application
Crystalline Instrument (or equivalent)	Enables controlled crystallization on a 2.5-5 ml scale, allows in-situ monitoring, and facilitates the addition of a single seed crystal to a supersaturated solution [2].
Temperature-Controlled Growth Cell	Provides precise thermal management for dissolution, cooling, and isothermal crystallization steps, which is critical for maintaining consistent supersaturation [14].
Inverted Microscope with Camera	Allows for real-time, in-situ observation and recording of seed crystal growth and secondary nucleation events, providing crucial kinetic data [14].
Well-Characterized Seed Crystals	Single crystals of known polymorphic form are the essential "template" used to direct the crystallization outcome via secondary nucleation [14] [2].
Isopropanol (IPA) / Organic Solvents	Common solvents for crystallization studies of organic molecules like TFA; solvent choice impacts solubility, metastable zone width, and interfacial energy [14].

The strategic application of a single crystal seeding approach provides a robust method for controlling polymorphic form in batch crystallization. By understanding the thermodynamic and kinetic principles that govern nucleation—specifically the roles of supersaturation, solubility ratios, and interfacial energies—researchers can rationally design seeding protocols to selectively target either metastable or stable polymorphs. This methodology, supported by the detailed protocols and quantitative data herein, offers a path toward more reliable and predictable crystallization outcomes in pharmaceutical development and beyond.

From Theory to Practice: A Step-by-Step Protocol for Robust Seeding

Within the broader context of developing a robust single crystal seeding approach for batch crystallization research, the preparation of high-quality seed stocks represents a critical foundational step. This protocol details standardized methodologies for the efficient crushing of crystalline material, the preparation of serial dilutions, and the stable storage of microseed stocks. Designed for researchers, scientists, and drug development professionals, these application notes provide a comprehensive guide to enhancing the reproducibility and success rate of protein crystallization campaigns, thereby accelerating structure-based drug discovery pipelines.

In protein crystallography, the growth of high-quality, diffraction-ready crystals remains a significant bottleneck. Seeding techniques bypass the stochastic nucleation phase by introducing pre-formed crystalline nuclei (seeds) into metastable protein solutions, thereby promoting controlled crystal growth [15]. The single crystal seeding approach is predicated on the principle that conditions suitable for crystal nucleation are often distinct from those ideal for crystal growth [16]. By decoupling these processes, seeding enables the production of larger, better-ordered single crystals, which is paramount for high-resolution X-ray diffraction studies. The efficacy of this approach is entirely dependent on the quality and consistency of the prepared seed stock. This document outlines a detailed protocol for creating and managing these essential resources, covering the techniques of crushing, serial dilution, and stable storage to ensure experimental reproducibility.

The Scientist's Toolkit: Essential Materials and Reagents

The following table catalogs the key reagents and materials required for the successful preparation of a microseed stock.

Table 1: Essential Research Reagent Solutions and Materials for Seed Stock Preparation

Item	Function and Specification
Seed Beads	Stainless steel, Teflon, or ceramic beads used to pulverize crystalline material into microseeds via vortexing. Typically 1/8 inch in diameter [17] [18].
Crystallization Plates	24-well or 96-well format plates (sitting or hanging drop) containing the initial protein crystals to be harvested.
Reservoir Solution	A solution matching the chemical condition in which the source crystals grew. Used to suspend and dilute the crushed seeds, preventing their dissolution [19] [17].
Glass Crushing Probe	A homemade tool fashioned from a glass Pasteur pipette with a rounded end (~0.5-0.75 mm diameter). Used for initial crystal crushing directly in the crystallization drop prior to transfer [16] [18].
Microcentrifuge Tubes	1.5 mL tubes for containing the seed bead and final seed stock. Must be kept on ice during preparation.
Vortex Mixer	A laboratory instrument used to vigorously agitate the seed bead tube, ensuring thorough crushing of crystalline material into a microcrystalline suspension [17] [18].

Strategic Workflow for Seed Stock Preparation

The entire process, from crystal selection to the final storage of the seed stock, is summarized in the following workflow diagram. This provides a logical overview before delving into the detailed experimental protocols.

Detailed Experimental Protocols

Crystal Selection and Initial Crushing

The process begins with the careful selection and harvesting of source crystalline material.

• Crystal Identification: Using a binocular microscope, identify wells containing protein crystals suitable for seeding. Any crystalline material, including fine needles, spherulites, or microcrystals, can be used [18]. It is critical to verify that the material is protein and not salt; this can be assisted by UV fluorescence microscopy, as protein crystals will fluoresce [16].
• Harvesting Solution Preparation: Prepare 1 mL of the reservoir solution that matches the condition of the source crystals. Chill this solution on ice [17].
• Initial Crushing:
  • Open the selected crystallization well. For 24-well hanging drop trays, remove the coverslip; for 96-well sitting drop trays, cut the sealing film with a scalpel [16].
  • Using a homemade glass probe (fashioned from a Pasteur pipette with a rounded end of ~0.75 mm), physically crush the crystals directly in the drop [16] [18]. This step serves to check that the crystals crush easily (indicating they are not cross-linked) and do not produce an audible "click" (which would suggest they are salt crystals) [16].

Creating a Microseed Stock Using Seed Beads

This section details the core methodology for generating a homogeneous suspension of microseeds.

• Transfer and Further Pulverization:
  • Add approximately 50 µL of the chilled reservoir solution to a 1.5 mL microcentrifuge tube containing a single seed bead, kept on ice [17] [18].
  • Pipette 5-6 µL of reservoir solution from this tube and transfer it to the drop containing the crushed crystals. Resuspend the crystalline material by pipetting up and down 5-6 times [16].
  • Transfer the entire suspension back to the seed bead tube. Repeat this process multiple times (e.g., 8 transfers using ~6 µL each time) to ensure all crystalline material is recovered [18].
• Vortexing: Cap the tube securely and vortex it for two minutes, stopping every 30 seconds to place the tube on ice to prevent overheating [16] [18]. Alternatively, perform three cycles of 30 seconds of vortexing followed by 30 seconds on ice [19]. This mechanical action, aided by the bead, creates a fine suspension of microseeds.
• Quality Check: After vortexing, remove a 2 µL aliquot and inspect it under a microscope to confirm the crystals have been thoroughly crushed into microseeds [19].

Serial Dilution for Crystal Number Optimization

Controlling the number of seeds added to a new crystallization drop is essential for growing single crystals rather than a shower of microcrystals. Serial dilution is the key technique for this control.

Table 2: Serial Dilution Scheme for Seed Stock Optimization

Dilution Tube	Dilution Factor	Preparation Method	Typical Use Case
Stock (Undiluted)	1:1 (Original)	Crushed crystal suspension in reservoir solution.	Initial Random Microseed Matrix Screening (rMMS) to maximize hits [18].
Dilution A	1:10	Mix 10 µL stock + 90 µL reservoir solution.	Optimization screens where the stock produces too many crystals.
Dilution B	1:100	Mix 10 µL of Dilution A + 90 µL reservoir solution.	Fine-tuning to obtain a manageable number (e.g., 1-10) of crystals per drop.
Dilution C	1:1,000	Mix 10 µL of Dilution B + 90 µL reservoir solution.	For conditions highly susceptible to seeding, aiming for very few large crystals.
Dilution D	1:10,000	Mix 10 µL of Dilution C + 90 µL reservoir solution.	Final optimization for growing a single, large crystal.

The general principle is that fewer seeds per drop result in fewer, but larger, final crystals because the available protein is accreted onto fewer nucleation sites [15]. The optimal dilution is system-dependent and must be determined empirically.

Stable Storage and Usage Protocols

Proper storage is vital for the long-term viability and experimental reproducibility of seed stocks.

• Aliquoting and Freezing: Immediately after preparation, aliquot the seed stock (including all dilutions) into small volumes (e.g., 10-20 µL) in fresh microcentrifuge tubes. This prevents repeated freeze-thaw cycles, which can degrade the seeds' effectiveness [19] [16]. Flash-freeze the aliquots and store them at -80 °C (or -20 °C if -80 °C is not available) [16] [18].
• Thawing and Use:
  • When needed, thaw an aliquot on ice.
  • Centrifuge the thawed stock for ~10 seconds to ensure a consistent distribution of microcrystals throughout the solution [19].
  • The seed stock is now ready for use. In a typical crystallization setup, the seed stock volume displaces an equivalent volume of the crystallization condition. For example, a 100 nL drop might be composed of 80 nL reservoir solution and 20 nL seed stock [19].
• Stability: Once made, a seed stock can undergo multiple freeze-thaw cycles without a significant loss of effectiveness, provided it is handled correctly [19].

Application Notes and Troubleshooting

Integration with Random Microseed Matrix Screening (rMMS)

For initial crystallization screening, the undiluted seed stock is highly recommended for use in rMMS. This technique involves adding the seed stock to a wide range of crystallization screening conditions, which often reveals new "crystallization leads" that would not nucleate spontaneously [16]. This is because the introduced seeds can grow in conditions that are within the "metastable zone" of the protein's phase diagram—a region where crystal growth is favored but nucleation does not occur [16].

Strategic Considerations for a Research Thesis

• Project Stage: The objective of seeding dictates the choice of source crystals. Early in a project, to find as many crystallization hits as possible, combine all available crystalline material into one seed stock. Later, for optimization, use only the "best" crystals (e.g., those that diffract to the highest resolution) to create a new, refined stock [16] [18].
• Precipitant Considerations: When creating a seed stock from crystals grown in diverse conditions, avoid mixing high-salt and high-polyethylene glycol (PEG) conditions, as this can cause phase separation [16] [18]. For protein complexes or ligand-soaking experiments, consider suspending seeds in a "neutral" precipitant like 40% PEG 3000 to avoid high salt concentrations that can be detrimental to complex stability or ligand binding [18].
• Membrane Proteins: Seed crystals of membrane proteins are particularly unstable. It is recommended to harvest and crush them in their mother liquor (the drop solution, which contains detergent) without adding pure reservoir solution, to prevent dissolution [18].

Troubleshooting Common Issues

• No Crystal Growth After Seeding: This is often due to seed dissolution. Ensure the seed stock and new crystallization drops are not under-saturated. Using a higher precipitant concentration in the reservoir solution used for the seed stock can help [17].
• Too Many Tiny Crystals: The seed stock is too concentrated. Repeat the experiment using a higher dilution (e.g., 1:100 or 1:1000) of the seed stock [18].
• Crystals Difficult to Crush: Old crystals can become cross-linked or otherwise tough. Use fresher crystalline material whenever possible, harvested as soon as they stop growing [18].

The controlled integration of seed crystals into a supersaturated batch represents a critical unit operation in industrial crystallization, dictating final product attributes such as crystal size distribution (CSD), polymorphic form, and purity. This application note delineates robust, experimentally-validated protocols for executing single-crystal seeding approaches within batch cooling crystallization systems. Supported by quantitative data on the effects of seed characteristics and impurity interactions, these methodologies provide a framework for researchers to bypass stochastic primary nucleation, suppress fine crystal formation, and achieve consistent, high-yield production of desired crystal forms. The procedures are contextualized within a broader research thesis on predictive CSD control, emphasizing the pivotal role of seeding in taming crystallization kinetics.

In batch cooling crystallization, the method of introducing seeds into a supersaturated solution is a decisive factor for process success. Seeding directly controls the onset of secondary nucleation and subsequent crystal growth, thereby governing critical quality attributes of the final particulate product [1]. The central thesis of this research posits that a meticulously executed single-crystal seeding strategy, founded on a quantitative understanding of secondary nucleation kinetics, enables unprecedented precision in tailoring CSD and minimizing process variability. This application note provides the detailed experimental protocols required to test this hypothesis, translating principle into practice for scientists and process development engineers.

The Scientist's Toolkit: Essential Materials and Reagents

The following table catalogs key reagents and specialized tools required for executing seeding experiments.

Table 1: Essential Research Reagent Solutions and Materials for Seeding Experiments

Item	Function/Description	Application Note
Seed Beads	Mechanically crush macro-crystals to generate a microseed stock.	Commercially available from Hampton Research; used in vortexing protocols to produce a homogeneous suspension of microseeds [19] [15].
Seeding Tool / Cat Whisker	A fine fiber for transferring microscopic seed nuclei via streak seeding.	Used to wick through crushed crystal material and then streak through a pre-equilibrated drop to deposit seeds [15] [20].
Stabilizing Solution	A solution matching the mother liquor to preserve seed viability.	Prevents seed dissolution after crushing and during storage; typically, the reservoir solution or a slightly more concentrated variant [20].
Crystalline System	An automated platform for in-situ monitoring of crystallization.	Quantifies secondary nucleation thresholds and kinetics by monitoring particle count and transmissivity in small volumes [1].
Ammonium Sulfate	A common precipitant and source of NH₄⁺ ions for impurity studies.	Used to investigate the specific impact of ammonium impurities on crystal growth, yield, and activation energy [7].

Quantitative Foundations: The Impact of Seeding and Impurities

The design of an effective seeding protocol is informed by quantitative studies linking process parameters to crystallization outcomes.

Table 2: Quantitative Data on Seeding and Impurity Effects in Batch Crystallization

Parameter Variation	Key Measured Outcome	Implication for Seeding Protocol
Seed Ratio (0.5% to 2%) [7]	Crystal output yield increased from ~7.8% (0.5% seed) to ~10.9% (2% seed) in a pure system.	Higher seed loads can significantly enhance final product yield.
NH₄⁺ Impurity (0 to 5 g/L) [7]	Output yield decreased at low impurity (≤2.5 g/L) but increased at high impurity (5 g/L), reaching ~18% yield with 2% seed.	Impurity concentration can drastically alter growth mechanisms and yield, necessitating pre-screening.
Temperature-Swing Strategy [5] [21]	Fine crystal mass and number reduced by >90% compared to a maximum of ~15% reduction with cooling only.	A strategy combining seeding with dissolution cycles (temperature-swing) is far more effective at removing fine crystals than cooling control alone.
Objective Function in CSD Control [5]	Functions based on volume density & higher-order moments promoted a "delayed-growth" strategy, producing larger crystals.	The desired CSD target (e.g., large crystals vs. reduced nuclei count) should inform the optimization strategy during seeding process development.

Detailed Experimental Protocols

Protocol A: Seed Stock Generation via Seed Bead Method

This protocol is optimized for creating a homogeneous microseed stock from existing crystals, suitable for quantitative seeding studies [19] [15].

• Crystal Production: Produce starting crystals using standard batch cooling or vapor diffusion methods.
• Solution Preparation: Prepare a stabilizing solution on ice. This is typically the reservoir solution used to grow the original crystals.
• Serial Dilution Setup: Pre-setup a serial dilution series using the chilled stabilizing solution to enable rapid dilution later.
• Crystal Harvesting and Crushing:
  • Under a microscope, open the well containing the donor crystals.
  • Using a pipette tip or needle, thoroughly crush the crystals to release microscopic fragments.
  • Rapidly add 2 µL of reservoir solution from the well into the drop, mix by pipetting and transfer the mixture to the first tube marked "Undiluted seed stock" containing a seed bead.
• Seed Stock Homogenization:
  • Vortex the tube for 30 seconds, then place it on ice for 30 seconds.
  • Repeat this cycle three times to ensure complete disaggregation of crystal material.
  • Check 2 µL of the stock under a microscope to confirm the presence of micro-crystals.
• Dilution and Storage: Perform serial dilutions using the pre-prepared chilled stabilizing solution. Flash-freeze the seed stocks and store them at -80°C. Stocks can undergo multiple freeze-thaw cycles without a significant loss of efficacy [19].

Protocol B: Single Crystal Seeding for Secondary Nucleation Studies

This advanced protocol, enabled by systems like the Crystalline, allows for the quantitative measurement of secondary nucleation kinetics, which is central to the research thesis [1].

• System Characterization: Determine the solubility and metastable zone width (MSZW) for your compound-solvent system using transmissivity data.
• Supersaturation Selection: Select a supersaturation level sufficiently close to the solubility curve to avoid spontaneous primary nucleation but within the metastable zone.
• Seed Crystal Preparation: Generate and characterize a single, well-defined parent crystal of known size. Calibrate the system's camera using microspheres to relate particle count to suspension density.
• Seeding Experiment:
  • Create a clear, supersaturated, and agitated solution at a constant temperature.
  • Introduce the single, characterized seed crystal into the solution.
• Nucleation Monitoring: Use in-situ visual monitoring and particle counting to track the increase in suspension density (Np) over time. The delay time between seed addition and the detection of new crystals is used to determine the secondary nucleation rate.

Protocol C: Streak Seeding into a Pre-equilibrated Supersaturated Batch

This manual technique is ideal for introducing a controlled number of nucleation sites into a batch crystallization [15] [20].

Diagram 1: Streak Seeding Workflow

• Condition Preparation: Set up crystallization drops with a precipitant concentration at 60-80% of the concentration that initially produced crystals. This ensures the solution is in a metastable state conducive for growth but not spontaneous nucleation [20].
• Pre-equilibration: Allow the drops to sit, sealed, for a period (from a couple of hours to overnight) to permit initial solvent equilibration. This prevents the dissolution of the delicate microseeds upon introduction.
• Seed Stock Generation: Prepare a diluted seed stock from donor crystals using the seed bead method (Protocol A) or a quick streak [20].
• Streak Seeding:
  • Open a pre-equilibrated drop.
  • Dip a clean cat whisker or seeding tool into the seed stock.
  • In one smooth motion, run the fiber through the drop, entering and exiting the drop to deposit seeds in a line.
  • Immediately reseal the drop.
• Incubation and Analysis: Incubate the drops at the desired temperature. Inspect them periodically, as crystals should preferentially grow along the streak line.

The precise execution of seeding is a cornerstone of modern batch crystallization research and development. The protocols detailed herein—ranging from the generation of quantitative microseed stocks to the advanced study of secondary nucleation—provide a reproducible pathway for controlling crystallization kinetics. When integrated with a fundamental understanding of the system's phase diagram and impurity profile, these methods empower scientists to consistently produce crystalline materials with target properties, thereby validating the central thesis that single-crystal seeding is a powerful tool for mastering crystallization processes.

Microseed Matrix Screening (MMS) represents a paradigm shift in protein crystallization strategies, moving beyond traditional optimization approaches. This technique systematically introduces microseeds, derived from existing crystalline material, into a wide matrix of unrelated crystallization conditions to identify optimal parameters for crystal growth [22] [23]. Within the broader context of single crystal seeding approaches in batch crystallization research, MMS offers a powerful methodology for overcoming the critical bottleneck of obtaining high-quality protein crystals suitable for X-ray diffraction studies [24]. The fundamental principle underlying MMS recognizes that optimal conditions for crystal nucleation differ significantly from those supporting crystal growth [23]. By bypassing the stochastic nucleation phase, researchers can exploit the metastable zone of the crystallization phase diagram where crystals grow but do not spontaneously nucleate [22].

The application of MMS has demonstrated remarkable success across diverse protein systems, often generating multiple crystal forms, different space groups, and better-diffracting crystals from suboptimal starting materials [23]. For drug discovery professionals and structural biologists, this approach provides a systematic path to obtaining structural data for previously intractable targets, thereby accelerating research timelines and improving success rates in structure-based drug design initiatives.

Theoretical Foundation

The Crystallization Phase Diagram

Protein crystallization is governed by a phase diagram that defines the relationship between protein concentration, precipitant concentration, and the resulting states (clear solution, metastable zone, nucleation zone, and precipitation zone) [22]. Understanding this diagram is crucial for effectively implementing MMS strategies.

Figure 1: Protein Crystallization Phase Diagram. The metastable zone is where MMS is most effective, as crystals grow but do not spontaneously nucleate [22].

In conventional crystallization screening, experiments only yield crystals when conditions traverse the nucleation zone [22]. The MMS approach fundamentally changes this dynamic by introducing pre-formed crystalline nuclei directly into the metastable zone, enabling crystal growth in conditions that would otherwise never produce crystals [22] [23]. This explains why MMS can identify crystallization conditions that traditional methods cannot access, as demonstrated in the case of yeast cytosine deaminase where calcium acetate conditions only produced crystals through microseeding despite failed attempts without seeds [23].

Comparative Seeding Strategies

Microseed Matrix Screening differs significantly from traditional seeding approaches in both methodology and application. The table below compares key characteristics of different seeding methods.

Table 1: Comparison of Protein Crystallization Seeding Methods

Method	Principle	Application Context	Advantages	Limitations
Microseed Matrix Screening (MMS)	Systematic addition of crushed microcrystals to diverse, unrelated conditions [22] [23]	Optimization and screening; particularly for recalcitrant targets [24]	Identifies new crystal forms; improves diffraction quality; automatable [23]	Requires initial crystalline material; seed stability concerns [22]
Streak Seeding	Transfer of microseeds via fiber through existing crystals to new drops [15]	Limited optimization around known conditions	Simple implementation; minimal equipment needed [15]	Low throughput; hit-and-miss success; difficult to control seed density [15]
Seed Bead	Mechanical crushing of crystals with beads to create seed stock [15]	Optimization with controlled seed concentration	Reproducible seed density; serial dilution possible [15]	Manual process; limited screening scope [22]
Macroseeding	Transfer of individual crystals to fresh solutions [15]	Improving size/morphology of existing crystals	Bypasses nucleation; enlarges existing crystals [15]	Technically challenging; crystal damage risk; limited applications [15]

Research Reagent Solutions and Materials

Successful implementation of MMS requires specific reagents and equipment designed to maintain seed viability and enable precise liquid handling.

Table 2: Essential Research Reagents and Equipment for MMS

Item	Function/Application	Examples/Specifications
Seed Beads	Mechanical crushing of crystals to create microseed stock [23]	Hampton Research Seed Bead kits [22]
Crystallization Screens	Matrix of conditions for seeding experiments [23]	Commercial sparse-matrix screens (e.g., The PEGs Suite, JCSG, PACT) [23] [25]
Liquid Handling Robots	Automated setup of MMS experiments [22] [26]	Douglas Instruments Oryx series; TTP Labtech Mosquito [22] [26] [23]
Glass Probes	Manual crushing of crystals for seed stock preparation [23] [25]	Rounded glass probes (handmade or commercial) [23]
Reservoir Solutions	Stabilization of seed stocks and serial dilutions [23]	Typically matches original crystal condition [23]

MMS Experimental Protocols

Seed Stock Preparation

The quality of the seed stock is paramount for successful MMS implementation. The following protocol, adapted from D'Arcy et al., ensures optimal seed stock preparation [23]:

• Crystal Selection: Choose the best quality crystals available, though any crystalline material including fine needles, microcrystals, or poorly formed crystals can be used [23] [25]. Older, cross-linked material is less suitable for seeding experiments [25].

• Crystal Harvesting: Add 10μL of reservoir solution to the drop containing crystals. Thoroughly crush the crystals using a spade-like tool or rounded glass probe [23]. Pipette the crushed seeds into a microcentrifuge tube containing a seed bead [23].

• Seed Recovery: Add another 10μL of reservoir solution to the drop, mix thoroughly to recover additional seeds, and transfer to the seed bead tube. Repeat this process until reaching a total volume of 50μL to maximize seed recovery [23].

• Vortexing: Vortex the seed bead tube for 2-3 minutes to further fragment seeds. Sonication is not recommended due to overheating risks [23].

• Dilution Series: Prepare 1:10 serial dilutions in reservoir solution. Concentrated and diluted seed stocks can be stored at -80°C and undergo multiple freeze-thaw cycles without significant loss of activity [23].

Robotic MMS Setup

Automation significantly enhances the efficiency and reproducibility of MMS experiments. The following workflow outlines the robotic setup process:

Figure 2: MMS Robotic Workflow. Automated procedure for high-throughput microseed matrix screening.

Robotic Setup Guidelines [23]:

• Screen Selection: Utilize any commercial sparse-matrix screen, with preference for screens that previously yielded crystalline material [23].

• Liquid Handler Requirements: Employ robots with contact dispensing and fluidics with sufficiently wide bore to accommodate seed stocks without clogging [23].

• Seed Stock Resuspension: Vortex or repeatedly aspirate seed stock immediately before setup to ensure homogeneous suspension [23].

• Drop Composition: For most applications, a ratio of 3 parts protein:2 parts reservoir solution:1 part seed stock is effective. Typical total drop volume is 600nL (300nL protein, 200nL reservoir, 100nL seed stock) [23].

• Mixing: Post-dispense mixing of crystallization drops is not recommended [23].

Manual MMS Setup

For laboratories without access to robotic liquid handlers, MMS can be implemented manually:

96-Well Sitting Drop Method [25]:

• Transfer 20-50μL of each crystallization condition from a 96-condition screen to corresponding wells of the crystallization tray.

• Combine 1.0μL of protein solution, 1.0μL of crystallization condition, and 0.5μL of seed stock in each drop.

• Seal the tray with transparent sealing sheet and incubate at 4-18°C.

24-Well Hanging Drop Method [25]:

• Transfer 300μL of each crystallization condition to wells of pre-greased 24-well trays.

• On plastic cover slips, combine 1μL of crystallization condition, 1μL of protein solution, and 0.5μL of seed stock.

• Invert cover slips and position over appropriate wells, pressing downward to form a secure seal.

Results and Applications

Quantitative Assessment of MMS Efficacy

Multiple research groups have documented significant improvements in crystallization success rates through MMS implementation. The following table summarizes key quantitative findings:

Table 3: Quantitative Results from MMS Implementation

Protein Target	Standard Screening Results	MMS Screening Results	Reference
5 Target Proteins (Novartis)	Average baseline hits	7-fold increase in hits	[23]
Various Proteins (NIMR, UK)	6 poorly-formed hits	~30 hits with several well-formed crystals	[22]
University of Copenhagen	1 hit in 288 wells	10 hits in 96 wells (first generation) + 10 additional hits (second generation)	[22]
Hen Egg White Lysozyme	Baseline success rate	4-10 fold increase in success rate	[25]
Bovine Liver Catalase	1 condition in Morpheus screen	55 conditions with crystals	[25]

Advanced MMS Applications

Iterative Seeding for Crystal Quality Enhancement

Crystal quality can often be improved through successive rounds of seeding. In one demonstrated case with a helicase protein, initial crystals grown in The PEGs Suite screen (Figure 3a) were used to prepare a seed stock for MMS, resulting in improved crystal morphology (Figure 3b). A second seed stock created from these improved crystals yielded further enhancement in crystal morphology (Figure 3c) [23]. This iterative approach demonstrates how MMS can progressively optimize crystal quality beyond what is achievable through conventional optimization.

Seed Stock Dilution Optimization

The concentration of seed stocks significantly influences crystallization outcomes. As demonstrated with a tyrosine kinase, using undiluted seed stock produced numerous small crystals, while 1:100 and 1:1000 dilutions yielded progressively fewer but larger crystals [23]. This dilution series approach provides researchers with a straightforward method to control crystal density and size, enabling optimization for specific experimental needs.

Cross-Seeding and challenging Targets

MMS has proven particularly valuable for challenging crystallization targets. In one notable example, the structure of arylamine N-acetyltransferase from Mycobacterium tuberculosis was determined through cross-seeding with the homologous protein from M. marinum [22] [24]. This approach demonstrates how MMS can facilitate structure determination for proteins that resist conventional crystallization strategies.

Technical Considerations and Troubleshooting

Seed Stability and Handling

Maintaining seed viability requires careful attention to handling conditions. Seed stocks should be kept on ice throughout preparation and dispensing procedures, as microseeds may dissolve if the solution warms up [22] [15]. The composition of the seed stock reservoir solution is also critical, as seeds prepared in this solution are typically stable, especially when stored frozen at -80°C [23].

Experimental Design Considerations

For initial MMS experiments, using undiluted seed stock is recommended to maximize the probability of obtaining crystallization hits [25]. In subsequent optimization phases, seed stock dilution can be employed to control crystal number and size [23]. Additionally, the choice of screening matrix should include conditions similar to the original crystal hit, but must also explore diverse chemical space to identify novel crystallization conditions [22].

Validation and Control Experiments

To confirm that crystallization results from the seeds rather than compositional changes, control experiments comparing reservoir solution alone versus reservoir solution containing seed stock are recommended [23]. In systematic comparisons across 15 different proteins, the seed stock was necessary to induce crystallization in every case, demonstrating that successful MMS outcomes genuinely result from the seeding process rather than compositional alterations [23].

Microseed Matrix Screening represents a sophisticated advancement in seeding methodologies within batch crystallization research. By systematically exploring crystal growth in diverse chemical spaces while bypassing the nucleation barrier, MMS significantly expands the crystallizability of challenging protein targets. The robust protocols, quantitative success metrics, and theoretical framework presented in this application note provide researchers with a comprehensive toolkit for implementing MMS in both academic and industrial settings. As structural biology continues to tackle increasingly complex biological targets, MMS will remain an essential component of the crystallization optimization arsenal, particularly in drug discovery programs where obtaining high-quality structural data is time-critical.

Isonicotinamide (INAM) is a prominent coformer in the field of pharmaceutical crystal engineering, widely recognized for its ability to form stable co-crystals that enhance the physicochemical properties of active pharmaceutical ingredients (APIs). Its molecular structure features both hydrogen bond donors (amide group) and acceptors (pyridine nitrogen), making it highly effective in forming robust supramolecular synthons with various APIs [27] [28]. This case study details the implementation of a single crystal seeding workflow for isonicotinamide within a broader research thesis on batch crystallization, presenting a standardized protocol for producing high-quality single crystals suitable for structural characterization via X-ray diffraction.

Background and Significance

The Critical Role of High-Quality Single Crystals

Single-crystal X-ray diffraction (SCXRD) is a foundational analytical technique in crystal engineering that provides unambiguous proof of molecular structure, atomic connectivity, and packing arrangements within a crystal lattice [29]. The quality of the structural data obtained is directly contingent upon the quality of the single crystals used for analysis. A suitable single crystal possesses long-range three-dimensional order and is typically a well-formed polyhedron with defined faces [29].

The primary motivation for implementing a controlled seeding workflow is to overcome the inherent unpredictability of spontaneous crystallization. By manually introducing a pre-formed, high-quality "seed" crystal into a supersaturated solution, researchers can bypass the stochastic nucleation phase and promote controlled, oriented growth on a known, structurally sound foundation. This approach significantly increases the probability of obtaining crystals of sufficient size and quality for SCXRD, thereby accelerating research and development timelines.

Isonicotinamide as a Versatile Coformer

Isonicotinamide has been successfully employed in co-crystallization with various APIs to modify and improve their properties. Key documented examples include:

• Fenbufen (NSAID): Co-crystallization with INAM yielded a 1:1 co-crystal and an unusual multi-component ionic co-crystal, resulting in significantly enhanced aqueous solubility of the parent drug [30].
• Zinc Phenylacetate: A novel multicomponent crystal with INAM transformed the highly hydrophobic API into a hydrophilic solid, dramatically improving its wettability and dissolution profile [31].
• Hydrochlorothiazide: While co-crystallized with the similar molecule nicotinamide, this serves as another example of using amide-functionalized coformers to engineer drug properties [32].

These case studies underscore the practical importance of INAM in drug development and the necessity of reliable methods, such as single crystal seeding, to obtain the high-quality crystals required for definitive structural characterization of these new solid forms.

Materials and Reagents

Table 1: Essential Research Reagents and Materials

Item	Specification / Function	Example / Notes
Isonicotinamide (INAM)	High-purity coformer (≥99%)	Purchased from suppliers like Alfa Aesar [31].
APIs for Co-crystallization	Ionizable or hydrogen-bonding APIs	e.g., Fenbufen, Zinc Phenylacetate [30] [31].
Solvents	High-purity, analytical grade	Methanol, ethanol, acetonitrile, ethyl acetate for LAG and solvent evaporation [30] [31].
Glassware	Clean, new vials with tight-fitting caps	Pre-cleaned to avoid contaminants; vials of different sizes for nested setups [29].
Seeding Tools	Transfer of seed crystals	Microspatulas, cat whiskers, or specialized crystal mounting loops.
Characterization Equipment	Verification of crystal structure and purity	Single-Crystal X-ray Diffractometer, Powder X-Ray Diffractometer (PXRD), FT-IR Spectrometer, Differential Scanning Calorimeter (DSC) [30] [31].

Experimental Protocols

Protocol 1: Initial Generation of Seed Crystals via Solvent Evaporation

The first step is to generate the initial batch of high-quality INAM or INAM-containing co-crystal seeds.

• Solution Preparation: Dissolve a small amount (~10-20 mg) of pure INAM (or a pre-formed INAM co-crystal powder from grinding experiments) in a minimal volume of a suitable warm solvent (e.g., methanol, ethanol) in a small vial [29] [31].
• Filtration: Filter the warm solution through a 0.45 μm syringe filter into a new, clean glass vial to remove any particulate matter or micro-crystals that may act as uncontrolled nucleation sites.
• Slow Evaporation: Cap the vial loosely to allow for slow, controlled solvent evaporation. Place the vial in a location free from vibrations, drafts, and direct sunlight [29].
• Monitoring: Check the vial daily. Suitable seed crystals are typically well-formed, with clear edges and faces, and ideally between 0.1 - 0.3 mm in size [29].
• Storage: Once suitable crystals form, store them in their mother liquor to prevent de-solvation or cracking. Never let the crystals dry out [29].

Protocol 2: Liquid-Assisted Grinding (LAG) for Co-crystal Screening

This protocol is used to rapidly screen for and confirm the formation of novel INAM co-crystals before proceeding to single crystal growth.

• Stoichiometry: Accurately weigh INAM and the target API in the desired molar ratio (e.g., 1:1, 1:2, 2:1) and combine them in an agate mortar or a ball-milling jar [30] [31].
• Grinding: Add a small amount of a "catalytic" solvent (e.g., 1-2 drops of methanol) [31].
• Processing: Grind the mixture manually with a pestle for 20-30 minutes, or use a ball mill (e.g., Retsch Mixer Mill) at a specific frequency for a set duration [30] [31].
• Analysis: Characterize the resulting powder using PXRD and DSC to verify the formation of a new crystalline phase distinct from the starting materials [30].

Protocol 3: Single Crystal Seeding Workflow

This core protocol details the seeding process itself, using the seeds and co-crystal powder from the previous protocols.

• Prepare Supersaturated Solution: Create a solution of the INAM co-crystal (confirmed via LAG) in a solvent or solvent mixture. Gently warm to dissolve the solid completely [29].
• Stabilize Temperature: Allow the solution to cool and stabilize to the target growth temperature (e.g., room temperature or in an incubator).
• Seed Introduction: Using a micro-spatula or a hair/mounting loop, carefully retrieve a selected seed crystal from its mother liquor. Gently introduce the seed crystal into the supersaturated solution, ensuring it is fully immersed. Avoid touching the walls of the vial.
• Crystal Growth: Loosely cap the vial and place it in an undisturbed, vibration-free environment. Monitor growth daily.
• Harvesting: Once the crystal has grown to a suitable size (ideally 0.2-0.3 mm), carefully harvest it from the solution, typically with a mounting loop. Keep the crystal immersed in a droplet of its mother liquor or a compatible inert oil (e.g., Paratone-N) during transfer to the diffractometer to prevent dehydration [29].

Workflow Visualization and Decision Pathways

The following diagram illustrates the logical flow of the single crystal seeding workflow for isonicotinamide, from initial screening to final characterization.

Table 2: Summary of Reported Isonicotinamide Co-crystals and Key Outcomes

API / Compound	Solid Form	Key Characterization Techniques	Primary Outcome	Citation
Fenbufen	1:1 Co-crystal & Multi-component Ionic Co-crystal	SCXRD, PXRD, DSC, FT-IR, Solubility Measurement	Significant enhancement of FBF solubility in aqueous medium.	[30]
Zinc Phenylacetate (Zn-PA)	Ionic Co-crystal (Zn-PA-INAM)	SCXRD, PXRD, FTIR, DSC, TGA, Contact Angle, HPLC	Marked decrease in hydrophobicity; contact angle shifted from 128.1° (Zn-PA) to 27.1° (Zn-PA-INAM). Improved dissolution.	[31]
General Co-crystal Development	N/A	ΔpKa rule, HSP, CSD analysis, CSMO-RS	Framework for coformer selection and crystal engineering design.	[27] [28]

Troubleshooting and Technical Notes

• Lack of Seed Growth: This often indicates that the solution is undersaturated. Carefully concentrate the solution by further slow evaporation and reintroduce the seed.
• Multiple Nucleation Events (Polycrystallization): This suggests the solution is overly supersaturated. Dilute the solution slightly with fresh solvent or increase the temperature to reduce supersaturation before reintroducing a new seed.
• Crystal Cracking or Opaqueness: This is frequently caused by overly rapid solvent loss, temperature fluctuations, or crystal dehydration. Ensure the vial is sealed appropriately and maintain a stable temperature environment. Always store and handle crystals in their mother liquor [29].
• Insufficient Crystal Size: The ideal crystal size for a standard laboratory X-ray diffractometer is approximately 0.2-0.3 mm. Modern instruments and synchrotron sources can analyze crystals as small as 0.1 mm [29]. If crystals are too small, slow down the evaporation rate significantly.
• Critical Parameter: Patience is the major factor. Crystals may grow in hours or take weeks to form. Disturbing the setup can ruin the experiment [29].

The implementation of a systematic single crystal seeding workflow for isonicotinamide, as detailed in this application note, provides a robust and reliable method for overcoming the challenges of crystal growth in pharmaceutical research. By integrating initial screening via liquid-assisted grinding with a controlled seeding protocol, researchers can efficiently produce the high-quality single crystals necessary for definitive structural characterization using SCXRD. This methodology not only accelerates the development of novel co-crystals with enhanced properties but also strengthens the overall framework of crystal engineering in drug development.

Solving Industrial Challenges: Impurities, Seed Quality, and Process Parameters

The pursuit of high-purity crystalline materials is a cornerstone of various industries, ranging from pharmaceutical development to battery manufacturing. In crystallization processes, the presence of impurities, particularly ammonium (NH₄⁺) ions, presents a significant challenge that can alter crystal yield, quality, and characteristics. Understanding the behavior of these impurities is not merely an academic exercise but a critical requirement for industrial process control. This Application Note examines the dual role of ammonium ions in crystallization processes, detailing how they can either inhibit crystal growth or incorporate into the crystal lattice, depending on their concentration. Framed within the broader thesis on single crystal seeding approaches in batch crystallization research, this document provides researchers and drug development professionals with detailed protocols and data to predict, characterize, and manage ammonium impurity effects in their experimental systems.

Key Findings: The Dual Role of Ammonium Ions

Recent research reveals that ammonium ions exhibit a concentration-dependent dual mechanism of action during crystallization processes. The pivotal factor determining the behavior of NH₄⁺ ions is their concentration relative to the primary crystallizing species.

• At Low Concentrations: NH₄⁺ ions act as growth inhibitors. They compete with the primary metal ions (e.g., Ni²⁺) for binding sites with the anion (e.g., SO₄²⁻), leading to a decrease in both crystal output yield and growth rate. This competition increases the activation energy required for crystallization [7] [33]. The impurity ions tend to attach to the crystal surface without full incorporation, causing structural distortions in the crystal lattice [7].

• At High Concentrations: A mechanistic shift occurs, leading to incorporation and double salt formation. The NH₄⁺ ions incorporate into the crystal lattice, forming a double salt such as (NH₄)₂Ni(SO₄)₂·6H₂O in the case of nickel sulfate systems [7] [33]. This incorporation results in an increase in crystal output yield and growth rate, while decreasing the crystallization activation energy [7]. The crystals produced under these conditions exhibit structural modifications but can demonstrate enhanced thermal stability up to 80°C [7] [33].

Table 1: Summary of Ammonium Ion Effects on Crystallization Characteristics

Characteristic	Low [NH₄⁺] (Inhibition Regime)	High [NH₄⁺] (Incorporation Regime)
Crystal Output Yield	Decreases	Increases
Crystal Growth Rate	Decreases	Increases
Activation Energy (Eᵃ)	Increases	Decreases
Crystal Structure	Structural distortion	Double salt formation
Impurity Behavior	Surface attachment	Lattice incorporation
Thermal Stability	Up to 80°C	Up to 80°C

Quantitative Data and Kinetic Properties

The influence of ammonium impurities extends to fundamental kinetic parameters of crystallization. The Johnson-Mehl-Avrami (JMA) theory and Arrhenius equation have been effectively applied to quantify these effects in nickel sulfate hexahydrate crystallization [7].

Table 2: Effect of Ammonium Impurity Concentration on Nickel Sulfate Crystallization Yield at Different Seed Ratios [7]

[NH₄⁺] (g/L)	Crystal Output Yield at 0.5% Seed Ratio (%)	Crystal Output Yield at 2% Seed Ratio (%)
0	7.77	10.89
1.25	Decreased from 7.77%	Decreased from 10.89%
2.5	6.48	10.32
3.75	Increased from 6.48%	Increased from 10.32%
5.0	Up to 17.98%

The data demonstrates that increasing the seed ratio significantly enhances crystal output yield across all impurity concentrations. Furthermore, the seed ratio slightly improves crystal purity, as it provides more controlled growth sites, potentially reducing random impurity incorporation [7] [33].

In related ammonium salt systems, such as ammonium bicarbonate crystallization, kinetic studies show that nucleation rate is most directly promoted by increased supersaturation [34]. The relationship is expressed through the kinetic model B₀ = 2.994 × 10⁸ × G¹.⁹⁰⁷, where B₀ is the nucleation rate and G is the crystal growth rate [34]. External factors such as stirring rate have complex, dual effects on crystal growth, while the application of static magnetic fields can accelerate solute diffusion by disrupting hydrogen bonds in the solvent, thereby facilitating crystal growth [34].

Experimental Protocols

Protocol 1: Investigating NH₄⁺ Effects in Batch Cooling Crystallization

This protocol is adapted from studies on nickel sulfate hexahydrate and is applicable for quantifying ammonium ion effects on inorganic crystal systems [7].

Materials and Reagents

• Primary solute (e.g., NiSO₄·6H₂O, ≥ 99.8%)
• Ammonium salt impurity source (e.g., (NH₄)₂SO₄, ≥ 99%)
• Distilled water
• Ethanol (for washing)
• Prepared crystal seeds (0.154 mm uniform size recommended)

Procedure

• Solution Preparation: Dissolve 224 g of primary solute in 200 mL of distilled water to achieve a supersaturation value (S) of approximately 1.109 at 25°C [7].
• Impurity Addition: Introduce (NH₄)₂SO₄ into the solution at varying concentrations (e.g., 0, 1.25, 2.5, 3.75, 5.0 g/L of NH₄⁺ ions) [7].
• Heating and Mixing: Heat the solution for 30 minutes at 60°C with constant stirring at 300 rpm to ensure homogeneous mixing and complete dissolution [7].
• Cooling Phase: Cool the solution to the desired initial crystallization temperature (e.g., 25°C) [7].
• Seeding: Add prepared seeds at varying seed ratios (0.5%, 1%, 1.5%, 2% w/w, relative to solute mass) to initiate controlled crystallization [7].
• Crystallization Process: Allow crystallization to proceed for 30 minutes with continuous agitation.
• Filtration and Washing: Separate crystals using pressure filtration. Wash crystals periodically with ethanol to minimize additional crystallization and remove surface-adsorbed impurities [7].
• Drying: Place filtered crystals in a laboratory incubator at 50°C until dry [7].

Characterization and Analysis

• Crystal Output Yield: Determine using the equation: Output yield = m_out / (m_sol + m_seed), where mout is the mass of output crystals, msol is the mass of crystal from solution, and m_seed is the mass of seed crystals [7].
• Kinetic Analysis: Use the Johnson-Mehl-Avrami (JMA) theory to model crystallization kinetics: x(t) = 1 - exp(-ktⁿ), where x(t) is the transformation fraction at time t, k is the rate constant, and n is the Avrami exponent [7].
• Activation Energy: Calculate using the Arrhenius equation: k_g = k₀ exp(-E_g/RT), where E_g is the activation energy for crystal growth [7].

Protocol 2: Ultrasound-Enhanced Evaporative Crystallization

This protocol is adapted from ammonium sulfate studies and is useful for systems where ultrasound application is feasible to enhance crystallization efficiency [35].

Procedure

• Solution Preparation: Prepare an aqueous solution of the target compound.
• Ultrasound Application: Apply ultrasound at specific power levels to the solution during the crystallization process.
• Parameter Optimization: Optimize key parameters including ultrasound power, stirring speed, pH value, and ultrasound duration [35].
• Yield Assessment: Compare product yield and solid-liquid transformation time with and without ultrasound application.

Key Findings from Literature: Ultrasound application in ammonium sulfate crystallization increased yield by 52.9%, reduced solid-liquid transformation time by 10%, and produced more uniform particle sizes by reducing solution supersolubility from 937.5 g/L to 833.33 g/L [35].

Ammonium Ion Mechanisms and Effects

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Materials and Reagents for Crystallization Impurity Studies

Reagent/Material	Specification/Function	Application Example
Nickel Sulfate Hexahydrate	NiSO₄·6H₂O, ≥ 99.8%; Primary solute for crystallization studies [7]	Model system for studying NH₄⁺ effects on crystal growth [7]
Ammonium Sulfate	(NH₄)₂SO₄, ≥ 99%; Source of NH₄⁺ ions for impurity studies [7]	Creating controlled impurity concentrations in crystallization solutions [7]
Crystal Seeds	Uniform size (0.154 mm recommended); Provide controlled nucleation sites [7]	Seeding approach for batch crystallization research [7] [33]
Ethanol	Wash solvent; Minimizes additional crystallization during filtration [7]	Removing surface-adsorbed impurities without dissolving crystals [7]
Ammonium Aluminum Sulfate	(NH₄)Al(SO₄)₂·12H₂O; Model compound for alum crystallization studies [36]	Investigating isomorphous substitution of impurity ions [36]

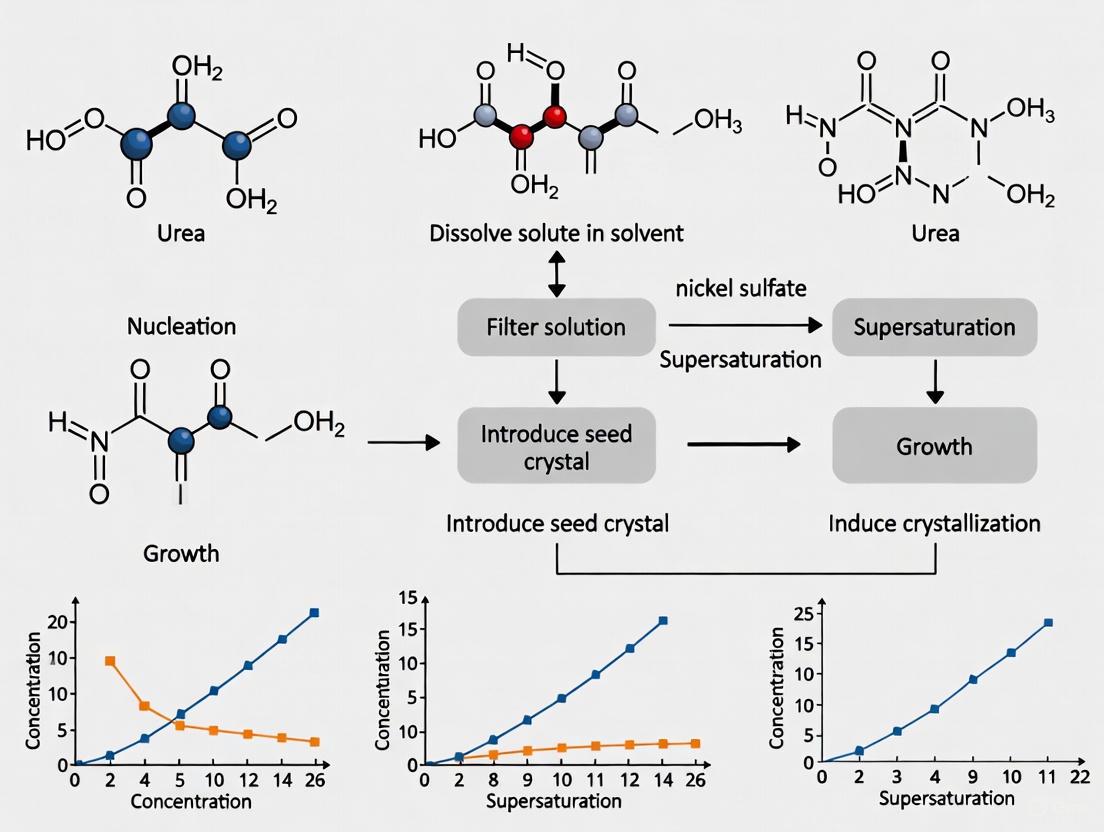

Experimental Workflow for Crystallization Studies

This Application Note demonstrates that ammonium ions exhibit a complex, concentration-dependent behavior in crystallization processes, transitioning from growth inhibitors at low concentrations to lattice-incorporated species at high concentrations. The single crystal seeding approach provides a controlled method to study these phenomena and mitigate some negative impurity effects. For researchers and drug development professionals, understanding these mechanisms is essential for designing robust crystallization processes that can accommodate or eliminate ammonium impurities. The protocols and data presented herein offer practical guidance for characterizing impurity effects and optimizing crystallization conditions to achieve desired crystal properties and purity levels. Future work in this field should focus on extending these principles to more complex multi-component systems and developing real-time monitoring techniques to track impurity behavior during crystallization.

In the broader context of research on single crystal seeding approaches for batch crystallization, the precise control of seed characteristics represents a critical frontier for producing advanced crystalline materials. Seeding is far from a mere art; it is a scientific strategy that stabilizes crystallization processes by providing designated surfaces for supersaturation consumption, thereby suppressing uncontrolled secondary nucleation [37]. The optimization of seed loading and physical properties is paramount for achieving a desired Crystal Size Distribution (CSD), which directly influences downstream processing efficiency and final product quality in industries ranging from pharmaceuticals to specialty chemicals [38] [39]. This protocol details evidence-based methodologies for optimizing seed ratio, size, and distribution, providing a structured framework for researchers aiming to implement a single crystal seeding approach with precision and reproducibility.

Theoretical Foundations of Seeding

The primary function of seeding is to provide a controlled surface for crystal growth, thereby managing the supersaturation of a solution. When effectively implemented, the added seed crystals consume the available supersaturation, maintaining it within the metastable zone where growth is favored over spontaneous nucleation. The relationship between seed characteristics and final product quality is governed by several key principles.

The seed loading ratio is fundamental. A critical seed concentration ((C_s^*)) must be exceeded to ensure that supersaturation is primarily consumed by the growth of existing seeds rather than by the formation of new nuclei [37]. Operating below this critical mass leads to significant secondary nucleation, producing a bimodal CSD with both grown seeds and a population of fine crystals [37] [39].

The concept of critical surface area ((S_c)) extends this principle, linking the total surface area of the seeds to the crystallized mass. Ensuring the seeded surface area reaches this critical value is essential for obtaining a narrow, unimodal CSD [39].

The seed size and distribution directly influence the growth dynamics of the final product. Research demonstrates that seeds of different sizes can grow at different rates, a phenomenon known as Growth Rate Dispersion (GRD) [39]. Furthermore, using seeds with a narrow size distribution is recommended, as wide seed distributions can make the desired final CSD unattainable [38]. A study on potash alum crystallization found that seed crystals with a narrower standard deviation (σ = 0.29) produced the largest mean crystal size (500 μm) compared to seeds with broader distributions [38].

Quantitative Data on Seed Optimization

The following tables consolidate key quantitative findings from the literature on the effects of seed loading, size, and distribution.

Table 1: Impact of Seed Loading and Characteristics on Final Crystal Properties

System	Key Variable	Optimal Value / Observation	Impact on Final CSD/Product
Potassium Alum-Water [37]	Seed Concentration	Critical seed concentration ((C_s^*)) must be exceeded	Unimodal CSD of grown seeds; suppression of secondary nucleation
Glycine-Water [39]	Seed Surface Area	Critical surface area ((S_c)) must be reached	Narrow, unimodal CSD
Glycine-Water [39]	Seed Size	Smaller seeds (0.4 mm) grew faster than larger ones (1 mm) under identical conditions	Final mean size depends on initial seed size due to Growth Rate Dispersion
Potash Alum-Water [38]	Seed Distribution	Narrow distribution (σ = 0.29) performed better than wide (σ = 0.35) or bimodal	Produced the largest mean crystal size (500 μm)
Nickel Sulfate Hexahydrate [7]	Seed Ratio & Impurity	Increasing seed ratio from 0.5% to 2% increased output yield from ~7.8% to ~10.9% (at 0 g/L NH₄⁺)	Higher seed loading increases yield and slightly improves crystal purity

Table 2: Summary of Seeding Policy and Methodological Guidelines

Aspect	Recommended Guideline	Rationale
Seed Mass	2-6% of theoretical crystallized mass (industrial practice) [39]	Balances productivity with effective suppression of nucleation
Seed Size Ratio	Final to initial seed size ratio ((L{sp}/Ls)) of 5:1 [39]	Prevents excessive growth that could lead to attrition or instability
Seed Distribution	Narrow, unimodal distribution [38]	Prevents a dispersed final CSD and makes the target CSD attainable
Seed Introduction	Slurried in a solvent and added homogeneously into the metastable zone [40]	Ensures even dispersion and growth, preventing localized nucleation

Experimental Protocols

Protocol 1: Determining Critical Seed Loading

This protocol establishes the minimum seed mass required to suppress secondary nucleation, based on the methodology used for potassium alum [37].

Research Reagent Solutions

Item	Function
Jacketed Crystallizer	Provides temperature control via a circulating coolant.
Agitator	Maintains homogeneous solution conditions and suspension.
Temperature Probe	Monitors and provides feedback for the cooling profile.
Seed Crystals	Well-characterized seeds of known size and distribution.

Procedure

• Solution Preparation: Prepare a saturated solution of the model compound (e.g., potassium alum) at an elevated temperature (e.g., 35°C).
• Supersaturation Generation: Cool the solution to the initial crystallization temperature to create a known, moderate initial supersaturation (e.g., ΔCᵢ = 5x10⁻³ kg/kg water).
• Seeding Trials: Conduct a series of batch crystallizations using the same cooling profile but with varying seed concentrations (Cₛ), defined as the ratio of seed mass added to the maximum theoretical crystal yield.
• CSD Analysis: At the end of each batch, isolate and analyze the product crystals using techniques such as sieve analysis or laser diffraction to determine the Crystal Size Distribution (CSD).
• Data Plotting & Interpretation: Create a "seed chart" by plotting the mean mass size of the product crystals (normalized by the seed size) against the seed concentration. The critical seed concentration ((C_s^*)) is identified as the point where the CSD becomes unimodal, indicating suppressed nucleation [37].

Protocol 2: Investigating the Impact of Seed Size and Distribution

This protocol evaluates how seed size and distribution variations affect the final CSD, as demonstrated with potash alum and glycine systems [38] [39].

Research Reagent Solutions

Item	Function
Sieving Apparatus	To fractionate seed crystals into narrow, specific size ranges.
Microscopy with Image Analysis	To characterize seed crystal morphology and size distribution.
ATR-UV/Vis Spectrometer	To track solution concentration in real-time during crystallization.

Procedure

• Seed Preparation: Prepare at least three distinct seed profiles:
  • Sieved Seed 1: Unimodal distribution with a relatively broad standard deviation (e.g., σ = 0.35).
  • Sieved Seed 2: Unimodal distribution with a narrow standard deviation (e.g., σ = 0.29).
  • Sieved Seed 3: A bimodal distribution (e.g., σ = 0.36) [38].
• Constant Process Conditions: For each seed profile, perform batch cooling crystallizations (e.g., using a cubic cooling profile) while keeping all other parameters constant (initial supersaturation, seed mass, agitation, final temperature).
• Online Monitoring: Use an analytical probe (e.g., ATR-UV/Vis) to monitor the solution concentration throughout the process, ensuring consistent supersaturation profiles across experiments [38].
• Product Analysis: Isulate and characterize the final product crystals. Key metrics include the final mean crystal size, the standard deviation of the CSD, and the presence of fine crystals.
• Validation: Compare the experimental results with predictions from a Population Balance Model (PBM) simulated in environments like MATLAB to validate the findings [38].

Visualization and Decision Pathways

The following diagram illustrates the logical relationship between seed characteristics and their impact on the crystallization outcome, guiding the development of a seeding strategy.

Diagram 1: The impact of seed loading, size, and distribution on the final crystal size distribution (CSD). Optimal choices leading to a target CSD are highlighted in green, while suboptimal choices are in red.

Optimizing seed loading, size, and distribution is a foundational element of a robust single crystal seeding approach in batch crystallization. The empirical data and protocols presented herein demonstrate that exceeding a critical seed mass or surface area is non-negotiable for suppressing nucleation and achieving a unimodal CSD. Furthermore, the initial seed profile directly templates the final product; narrow seed distributions and appropriately sized crystals are paramount for obtaining a predictable and desirable outcome. By adhering to these structured methodologies, researchers and drug development professionals can transform seeding from an art into a controlled, scalable scientific practice, ensuring consistent product quality and enhancing the efficiency of industrial crystallization processes.

Designing Effective Cooling Profiles and Temperature Cycles to Maximize Seed Growth

Within the broader research on single crystal seeding approaches for batch crystallization, the strategic design of the cooling profile is a critical determinant of success. The primary challenge in industrial batch cooling crystallization lies in balancing crystal nucleation and growth to achieve a uniform, large crystal size distribution (CSD) with minimal fine formation. This application note provides a consolidated framework of proven cooling strategies and detailed experimental protocols, grounded in recent research, to guide researchers and drug development professionals in maximizing seed crystal growth.

The Impact of Objective Functions on Cooling Strategy

The choice of objective function during optimization directly shapes the resulting cooling profile and final product properties. Research comparing different objective functions reveals distinct strategic outcomes, which are summarized in the table below.

Table 1: Effect of Objective Functions on Crystallization Strategy and Outcomes [5]

Objective Function Basis	Crystallization Strategy	Impact on Nucleated Crystals	Impact on Final Crystal Size
Volume-weighted density distribution & Higher-order moments	Late Growth	Effectively reduces nucleated crystal volume	Produces larger crystals
Number-weighted density distribution & Lower-order moments	Early Growth	Effectively reduces the number of nucleated crystals	-
Minimizing nucleation volume	Late Growth	Reduces nucleated crystal volume and maximizes crystal size	Maximizes crystal size

Temperature Cycling for CSD Control

Beyond simple cooling, temperature cycling—the controlled oscillation of process temperature—is a highly effective method for manipulating CSD. This process leverages the simultaneous mechanisms of dissolution and growth.

Table 2: Comparison of Cooling and Temperature Cycling Strategies [5] [41]

Strategy	Key Principle	Reported Efficacy	Impact on Crystal Size Distribution (CSD)
Programmed Cooling	Controlled monotonic temperature decrease	Reduces nucleated crystals by ~15%	Produces larger average crystal size
Temperature Cycling	Intentional cycling between dissolution and growth temperatures	Reduces nucleated crystals by over 80%	Can result in a broader product CSD

During temperature cycles, smaller crystals, which have higher solubility, dissolve preferentially in the heating phases when supersaturation is low or negative. The dissolved material then re-deposits onto the larger, more stable seed crystals during subsequent cooling phases, thereby amplifying their growth.

The following diagram illustrates the logical decision-making process for selecting an appropriate temperature control strategy based on desired crystal outcomes.

Figure 1: Logic flow for selecting a temperature control strategy to meet specific crystallization objectives.

Experimental Protocols

Protocol: Establishing a Baseline Seeded Cooling Crystallization

This protocol outlines the steps for a standard seeded batch cooling crystallization, which serves as a baseline for evaluating the effectiveness of complex temperature profiles [7].

• Materials

  • Crystallizer: A jacketed vessel connected to a programmable thermostat.
  • Agitation: An overhead stirrer with a suitable impeller.
  • Temperature Probe: Calibrated PT100 sensor.
  • Seeds: Sieved fraction of the target compound with a defined size (e.g., 150-180 µm).

• Procedure

  • Solution Preparation: Charge the crystallizer with a known mass of solvent. Heat the solvent to a temperature where the solute is fully soluble (e.g., 10 K above saturation).
  • Dissolution: Slowly add the solute with continuous stirring until completely dissolved, ensuring a clear solution.
  • Saturation: Adjust the solution temperature to the predetermined saturation temperature for your chosen concentration.
  • Seeding: Cool the solution to a temperature within the metastable zone (typically 2-5 K below saturation) and add a precise mass of seed crystals (common seeding ratios are 0.5-2.0% w/w of theoretical crystal yield).
  • Baseline Cooling: Initiate a linear cooling profile from the seeding temperature to the final temperature at a constant rate (e.g., 0.5 K/h).
  • Crystal Harvest: Once the final temperature is reached, hold for a defined period (e.g., 1-2 hours) before isolating the crystals by filtration or centrifugation.
  • Analysis: Dry the product and analyze the CSD using techniques like laser diffraction or sieve analysis.

Protocol: Implementing a Fines Destruction Temperature Cycle

This protocol details the integration of a temperature cycle into a cooling profile to dissolve fine crystals and narrow the CSD [5] [41].

• Procedure (Follow Steps 1-4 from Protocol 4.1)
  • Initial Growth Phase: After seeding, maintain a constant temperature or apply a very slow cooling rate for a duration t_hold1 (e.g., 1 hour) to allow for initial seed growth.
  • First Heating Cycle: Increase the temperature by a predetermined amplitude ΔT_cycle (e.g., 1-3 K). The heating rate can be relatively fast (e.g., 10 K/h). Hold at this elevated temperature for a short duration t_heat (e.g., 15-30 minutes) to dissolve fine nuclei.
  • Cooling/Growth Phase: Cool the solution back to the temperature prior to the heating cycle. The cooling rate should be controlled (e.g., 5 K/h). This re-establishes supersaturation, promoting growth on the remaining seeds.
  • Cycle Repetition: Repeat Steps 6 and 7 for a defined number of cycles N_cycles (e.g., 3-5 cycles).
  • Final Cooling: After the last cycle, resume the standard cooling profile (e.g., 0.5 K/h) down to the final temperature.
  • Harvest and Analysis: Perform as in Step 7 of Protocol 4.1.

The workflow for this protocol, including the temperature cycle, is visualized below.

Figure 2: Experimental workflow for implementing a fines-destruction temperature cycle during seeded cooling crystallization.

The Scientist's Toolkit: Essential Reagents and Materials

Table 3: Key Research Reagent Solutions and Materials [41] [7]

Item	Function / Rationale
Programmable Thermostat	Precisely controls crystallizer temperature according to complex, user-defined profiles. Essential for implementing temperature cycles.
Peltier Element Modules	Enable very precise and rapid heating/cooling for small-scale or modular crystallizers, facilitating complex temperature profiles.
Seeds (Sieved Fraction)	Provide controlled nucleation sites. A narrow seed size distribution (e.g., 150-180 µm) is critical for uniform growth and interpretable results.
In-situ Particle Analyzer	Monitors Crystal Size Distribution (CSD) in real-time, providing immediate feedback on the effect of temperature changes.
Saturated Solution (at T_sat)	A solution prepared at its saturation temperature for a given concentration provides a known starting point for seeding and supersaturation control.
Antisolvent (e.g., Ethanol)	Used for crystal washing during filtration to minimize occlusion of mother liquor impurities and prevent further crystallization.

Selecting the Right Objective Function for CSD Optimization in Model-Based Strategies

In batch cooling crystallization, achieving a target Crystal Size Distribution (CSD) is critical as it influences key product properties, including filtration efficiency, bioavailability, and chemical stability [5]. Within model-based optimization strategies, the selection of an objective function is a pivotal decision that directly dictates the control trajectory and the final product's particulate properties [5]. This application note details the impact of different objective functions on CSD, providing protocols for their evaluation within a research framework centered on a single crystal seeding approach, a method proven to enhance control over nucleation and growth [1].

The Critical Role of the Objective Function

The objective function is a mathematical expression that the optimization process seeks to minimize or maximize. In crystallization modeling, it quantitatively defines the desired product quality, steering the computed control policy (e.g., cooling profile) to achieve a specific CSD [5]. Different objective functions can lead to significantly different crystal growth trajectories and final outcomes, making their correct selection paramount [5].

Research demonstrates that the choice of objective function can be categorized into distinct strategic impacts on the crystallization pathway [5]:

• Late-Growth Strategy: Promoted by functions based on volume-weighted density distributions and higher-order moments (e.g., the third moment, (\mu_3), which is related to crystal volume). This strategy yields larger crystals and effectively reduces the volume of nucleated material.
• Early-Growth Strategy: Induced by functions based on number-weighted density distributions and lower-order moments. This approach is effective at reducing the number of nucleated crystals.

Table 1: Classification and Impact of Common Objective Functions [5]

Objective Function Basis	Representative Examples	Crystallization Strategy	Impact on Nucleated Crystals	Final Crystal Size
Volume-weighted density / Higher-order moments	( Fv ), ( Nv ), ( \mu_3 ), Weighted Coefficient of Variation (wCOV)	Late-growth	Reduces volume	Larger
Number-weighted density / Lower-order moments	( F_n ), Lower-order moments	Early-growth	Reduces number	Smaller

Quantitative Analysis of Objective Function Effects

A systematic study comparing six moment-based and three distribution-based objective functions revealed clear quantitative trade-offs. The study modeled batch cooling crystallization using a population balance model for a potassium nitrate-water system [5].

A key finding was the limitation of cooling strategies alone in eliminating nuclei. While an optimized cooling strategy alone reduced nucleated crystals by approximately 15%, incorporating a temperature-cycle strategy—which induces partial dissolution—could reduce nucleated crystals by over 80% [5]. This highlights that the objective function works in concert with the chosen operational strategy.

Table 2: Quantitative Performance of Optimization Strategies [5]

Optimization Strategy	Nucleated Crystal Reduction	Impact on CSD Breadth
Optimized Cooling Strategy	~15%	Narrower distribution
Temperature-Cycle Strategy	>80%	Broader distribution

Experimental Protocol for Evaluating Objective Functions

This protocol outlines a methodology for empirically validating model-based optimizations derived from different objective functions, using a single crystal seeding approach to ensure well-defined initial conditions.

Materials and Equipment

Table 3: Research Reagent Solutions and Essential Materials

Item	Function / Description
Crystalline System	e.g., Potassium Nitrate-Water [5] or Isonicotinamide-Ethanol [1]. A well-characterized system with known kinetics.
Single Seed Crystals	Well-characterized, singular crystals of the target compound to initiate controlled secondary nucleation and growth [1].
Jacketed Crystallizer	Provides precise temperature control for executing optimized cooling or temperature-cycling profiles [5].
In-situ Analytical Probe	A particle size analyzer (e.g., using transmissivity or image analysis) to monitor suspension density and CSD in real-time [1].
Population Balance Model (PBM)	A mathematical model (e.g., incorporating size-dependent growth and dissolution) for simulating crystallization dynamics and computing optimal controls [5].

Seeding and Secondary Nucleation Workflow

The following workflow is adapted from established single crystal seeding methodologies [1] and is crucial for generating reproducible data for model validation.

Procedure:

• Determine Solubility and Metastable Zone (MSZW): Use a technique like transmissivity measurement in a platform such as the Crystalline to generate accurate solubility and metastability curves. This defines the operational window to avoid spontaneous primary nucleation [1].
• Generate and Characterize a Single Seed Crystal: Produce a single, well-defined crystal of the target compound. Precisely measure its size, as secondary nucleation rate is size-dependent [1].
• Calibrate Particle Detection: Calibrate the in-situ camera or particle counter using standards (e.g., polystyrene microspheres) to quantify suspension density (Np) from the measured particle count (N) [1].
• Prepare Supersaturated Solution: In a temperature-controlled crystallizer, prepare a clear solution at a specific supersaturation level chosen to be within the MSZW, close to the solubility curve to minimize primary nucleation risk [1].
• Introduce Single Seed Crystal: Add the characterized single seed crystal to the agitated, supersaturated solution. This seed will act as the parent for secondary nucleation [1].
• Monitor Secondary Nucleation: Observe the suspension density in real-time. The onset of secondary nucleation is indicated by an increase in particle count after a measurable delay time. This data is used to determine the secondary nucleation rate [1].
• Apply Optimized Temperature Profile: Execute the cooling or temperature-cycling profile generated by the model-based optimization for a specific objective function [5].
• Analyze Final CSD: At the end of the batch, use an appropriate off-line technique (e.g., laser diffraction, image analysis) to determine the final CSD and compare it with the model prediction and target.

A Framework for Objective Function Selection

The decision process for selecting an objective function must align with the ultimate goal of the crystallization process. The following diagram outlines a logical selection framework.

Application to Seeding Research: In a single crystal seeding approach, the initial conditions are tightly controlled. The choice of objective function then primarily guides how the added seed mass is utilized. A volume-based function will promote growth on the seeds, while a number-based function may encourage a control policy that generates more, smaller crystals. For processes where seed crystal growth is paramount, volume-weighted and higher-order moment functions are typically most appropriate [5].

The selection of an objective function is a fundamental step in model-based optimization of CSD, directly influencing the control strategy and final product properties. Functions based on volume-weighted distributions and higher-order moments promote a late-growth strategy for larger crystals, whereas those based on number-weighted distributions and lower-order moments favor an early-growth strategy to minimize crystal count. Integrating these model-based decisions with advanced experimental techniques, such as a single crystal seeding protocol, provides a powerful methodology for achieving precise control over crystallization outcomes. For the most challenging purity requirements, particularly the removal of fine nuclei, a temperature-cycling strategy proves far more effective than cooling strategies alone.

Proving the Value: Seeding Performance Against Conventional Methods and Novel Applications

Within the broader research on single-crystal seeding approaches, understanding the fundamental divergence in Crystal Size Distribution (CSD) between seeded and unseeded batch crystallizers is paramount. Unseeded crystallization relies on spontaneous nucleation, a stochastic process that often leads to broad and unpredictable CSDs. In contrast, seeded crystallization, a cornerstone of controlled particle engineering, uses well-characterized seed crystals to dominate the crystallization process, consuming supersaturation and suppressing unwanted secondary nucleation. This application note provides a quantitative comparison, detailed protocols, and visual frameworks to guide researchers in selecting and optimizing the appropriate crystallization strategy for their specific application, particularly in pharmaceutical development where CSD directly influences drug bioavailability, filtration efficiency, and final product stability [42] [43].

Performance Comparison: Seeded vs. Unseeded Crystallization

The choice between seeded and unseeded crystallization has a profound and measurable impact on critical process outcomes. The table below summarizes the comparative performance of both approaches across key metrics, synthesizing data from multiple model systems.

Table 1: Quantitative comparison of CSD performance in seeded vs. unseeded batch crystallizers.

Performance Metric	Seeded Crystallization	Unseeded Crystallization
CSD Shape	Unimodal, narrow distribution [37] [39]	Often polymodal or broad, sigmoidal distribution [42]
Mean Crystal Size	Controllable, dependent on initial seed size and loading [39] [44]	Variable and less predictable [42]
Nucleation Behavior	Secondary nucleation suppressed above critical seed load [37]	Significant primary and secondary nucleation [42]
Process Control & Reproducibility	High [43]	Low, due to stochastic nucleation
Supersaturation Management	Controlled consumption by seed growth; low supersaturation throughout [37]	High, variable supersaturation peaks leading to nucleation events [42]
Aspect Ratio & Crystal Habit	Improved aspect ratio and more isotropic crystals can be achieved [43]	Habit and aspect ratio are less controlled [43]
Typical Yield of Target CSD	High	Low to Moderate

Quantitative Data and CSD Analysis

Experimental data from various systems provides a quantitative basis for the performance claims.

Table 2: Experimental data on seeding effects from different chemical systems.

Compound	Key Seeding Parameter	Impact on CSD & Product Quality	Source
Potassium Alum	Seed concentration above a critical value (Cs*)	Unimodal product CSD of grown seeds obtained, regardless of cooling mode. Secondary nucleation avoided [37].	Kubota et al., 2001
Glycine	Seed surface area reaching a critical surface (Sc)	CSD is controlled, yielding a narrow, uni-modal distribution. Final product size is predefined by seed crystals [39].	Lung-Somarriba et al., 2004
Potassium Nitrate (KNO3)	Increased seed load	Nucleation capacity decreases and growth capacity increases; CSD becomes more uniform. However, linear growth rate and mean product size reduce [44].	Huang et al., 2010
L-Glutamic Acid (LGA)	Seeding with α-form or β-form seeds	Enables control over polymorphic form and improves crystal aspect ratio, leading to higher isotropy and significantly improved downstream drying efficiency [43].	Lee et al., 2025

Experimental Protocols

Protocol 1: Seeded Batch Cooling Crystallization

This protocol outlines a generalized methodology for conducting seeded cooling crystallization, adaptable to various compounds like glycine and potassium alum [37] [39].

4.1.1 Seed Preparation and Loading

• Seed Selection: Choose a seed crystal population with a narrow size distribution. The target final crystal size is directly related to the initial seed size [39].
• Critical Seed Mass Determination: The seed mass (W_s) is a function of the theoretical crystallized mass (W_c), and the initial (L_s) and target final (L_sp) seed size, as per the equation from the literature: W_c/W_s = (L_sp/L_s)³ [39]. For a target growth ratio (L_sp/L_s) of 5, the seed mass is approximately 0.8% of the theoretical crystallized mass, though industrial practices often use 2-6% [39].
• Critical Surface Area: Ensure the total surface area of the seeds meets or exceeds the system-specific critical surface area (S_c) to suppress secondary nucleation effectively [39].

4.1.2 Crystallization Execution

• Saturation: Prepare a solution saturated at a higher temperature (e.g., 35°C for glycine). Filter the solution while hot to remove any residual solids [39].
• Supersaturation Generation: Cool the solution to a temperature within the metastable zone to generate an initial supersaturation (e.g., ΔC_i = 5×10^-3 kg-hydrate/kg-free water for potassium alum) [37].
• Seeding: Introduce the pre-wetted, calibrated seeds into the supersaturated solution. This is typically done at a temperature a few degrees above the saturation temperature at the final concentration [39].
• Cooling Profile: Execute a controlled cooling profile from the seeding temperature to the final temperature. Both natural and controlled linear cooling have been shown effective when sufficient seeds are used [37].
• Harvesting: Once the final temperature is reached and solute deposition is complete, filter the slurry to separate the crystals from the mother liquor.

Protocol 2: Unseeded Batch Cooling Crystallization

This protocol describes a standard unseeded crystallization, which is highly dependent on spontaneous nucleation.

• Solution Preparation: Dissolve the solute in a solvent (e.g., water) to create a clear, undersaturated solution at an elevated temperature [43].
• Generate Supersaturation: Cool the solution according to a defined profile (linear or natural). The cooling rate can be a critical parameter; fast cooling generates high supersaturation, leading to rapid nucleation and many small crystals, while slow cooling may produce fewer, larger crystals [43].
• Nucleation and Growth: Allow the solution to cool through the metastable zone until spontaneous nucleation occurs, detected by a sudden increase in cloudiness. Crystal growth then proceeds from these newly formed nuclei.
• Harvesting: Filter the product crystals after reaching the final temperature. The CSD will reflect the stochastic nature of the nucleation event and the growth history of the crystals.

Mechanism and Workflow Visualization

The fundamental difference between the two processes lies in how supersaturation is consumed. The following diagram illustrates the mechanistic pathways.

Diagram 1: Mechanistic pathways in seeded vs. unseeded crystallization.

The Scientist's Toolkit: Essential Research Reagents and Materials

The following table lists key materials and their functions for conducting controlled crystallization experiments, as featured in the cited research.

Table 3: Key research reagents and materials for batch crystallization studies.

Item	Function / Relevance	Example from Literature
Model Compounds	Well-characterized systems for method development and validation.	Potassium alum [37], Glycine [39], Potassium nitrate (KNO3) [44], L-Glutamic acid (LGA) [43].
Seed Crystals	Pre-characterized crystals of specific size, morphology, and polymorphic form to initiate and control crystallization.	α-form and β-form LGA seeds for polymorph control [43]; sized potassium alum seeds for CSD studies [37].
Jacketed Crystallizer	A temperature-controlled vessel for performing cooling crystallization.	12.2 L draft tube crystallizer [37]; 1 L double-jacketed glass crystallizer [39] [43].
Programmable Thermostat / Chiller	Precisely controls the cooling profile of the crystallizer, a key operational variable.	Used in all referenced experimental setups to execute natural or controlled cooling modes [37] [39] [43].
In-situ Analytical Probes (PAT)	Monitor concentration, supersaturation, and CSD in real-time.	ATR-FTIR for concentration; FBRM for CSD monitoring; Raman spectroscopy for polymorphic form [42].
Densimeter	Measures solution density for offline or online determination of solution concentration.	Used for kinetic analysis in potassium nitrate crystallization [44].

This application note provides a detailed quantitative framework for evaluating the impact of a single crystal seeding approach in batch cooling crystallization. Within pharmaceutical development and high-value chemical production, controlling crystallization is critical for determining final product properties, including particle size distribution (PSD), polymorphism, and processability, which directly influence downstream efficiency, bioavailability, and solubility [2]. Seeding, a technique to induce controlled secondary nucleation, has emerged as a powerful strategy to stabilize this process. This document synthesizes experimental data and protocols to quantify the benefits of single crystal seeding on yield, reproducibility, and process efficiency, providing researchers and development professionals with a validated methodology for implementation.

Quantitative Benefits of Seeding

The implementation of a well-designed seeding strategy delivers measurable improvements across key crystallization performance metrics. The tables below summarize the quantifiable gains in yield and efficiency, reproducibility, and the impact of critical process parameters.

Table 1: Yield and Process Efficiency Metrics

Metric	Unseeded Process Performance	Single Crystal Seeded Process Performance	Quantified Benefit	Reference
Nucleation Induction Time	~75 minutes	~6 minutes	92% reduction in waiting time for nucleation onset [2] [1]
Batch Cycle Time	Baseline (Inefficient batches)	Optimized batches	Potential 12% reduction in overall cycle time [45]
Steam Consumption	Higher consumption due to longer cycles	Minimized	Direct reduction through shorter, more efficient batches [45]
Sieve Blockages	Frequent issues reported	Prevented	Improved downstream processing and operational continuity [45]

Table 2: Reproducibility and Product Quality Metrics

Metric	Unseeded/Improperly Seeded Process	Properly Seeded Process	Experimental Conditions	Reference
Crystal Size Distribution (CSD)	Unpredictable, potentially multimodal	Unimodal, grown seeds	Achieved with seed loading above a critical concentration (Cs*) [37]
Process Stabilization	Dependent on slow cooling	Achieved regardless of cooling mode (natural or controlled)	Using adequate seed loading to suppress secondary nucleation [37]
Secondary Nucleation Control	Uncontrolled primary nucleation dominates	Suppressed and controlled	Single crystal seeding in supersaturated solution [2]

Table 3: Impact of Seed Characteristics on Process Outcomes

Parameter	Effect on Nucleation	Impact on Final Product	Experimental Observation	Reference
Seed Size	Faster secondary nucleation with larger crystals	Influences number of particles and final PSD	Larger single seed crystals induced faster secondary nucleation [2] [1]
Seed Loading (Concentration)	Determines if grown seeds or new nuclei dominate CSD	Unimodal CSD of grown seeds achieved above critical seed concentration	Key factor for suppressing secondary nucleation; a "seed chart" methodology can determine critical loading [37]
Supersaturation Level	Must be within metastable zone to avoid primary nucleation	Enables controlled growth on seeds	Threshold supersaturation for seed propagation can be measured [2] [1]

Experimental Protocols

Protocol: Measuring Secondary Nucleation via Single Crystal Seeding

This protocol allows for the accurate measurement of secondary nucleation rates, distinguishing them from primary nucleation events, and is adapted from methodologies used with the Crystalline instrument [2] [1].

1. Objective: To determine the secondary nucleation threshold and rate by introducing a single, characterized seed crystal into a supersaturated solution.

2. Research Reagent Solutions & Essential Materials

Table 4: Key Research Reagent Solutions and Materials

Item	Function/Brief Explanation
Crystalline Instrument (or equivalent)	Provides a platform for small-volume (2.5-5 ml) crystallization with built-in agitation, temperature control, camera functionality, and transmissivity measurement [2] [1].
Supersaturated Solution	The solution of the target molecule (e.g., Isonicotinamide in ethanol) at a defined supersaturation level, prepared within the metastable zone to avoid spontaneous primary nucleation [1].
Characterized Single Seed Crystals	Well-defined crystals of the target compound, with known size and morphology, used to induce secondary nucleation [2].
Polystyrene Microspheres	Used for calibrating the instrument's camera to convert particle counts on the screen into an accurate suspension density (Np) [1].

3. Methodology:

• Step 1: Determine the Metastable Zone Width (MSZW). Generate the solubility and metastable curve for the compound-solvent system using transmissivity data from the Crystalline instrument. This defines the operating window for the experiment [1].
• Step 2: Select Supersaturation Levels. Choose several supersaturation levels within the metastable zone, sufficiently close to the solubility curve to avoid spontaneous primary nucleation during the experiment's timeframe [1].
• Step 3: Generate and Characterize Single Crystals. Produce parent crystals and characterize their size accurately. This is a critical input parameter [2].
• Step 4: Calibrate the Camera. Use polystyrene microspheres to establish a correlation between the number of particles counted by the instrument's software (N) and the actual suspension density (N_p) [1].
• Step 5: Execute Seeded Experiment. Add a single, characterized seed crystal to a clear, supersaturated, and agitated solution maintained at a constant temperature. Continuously monitor the number of crystals formed over time [2] [1].
• Step 6: Execute Control (Unseeded) Experiment. Under identical conditions, run an experiment without any seed crystals to monitor the induction time for spontaneous primary nucleation [2].
• Step 7: Data Analysis. Plot the suspension density over time. The delay time between seed addition and the increase in suspension density, and the subsequent rate of density increase, quantify the secondary nucleation behavior. Compare the induction times between seeded and unseeded experiments [2].

Protocol: Establishing a Critical Seeding Policy

This protocol, based on work with the potassium alum-water system, provides a methodology for determining the critical seed loading required to achieve a unimodal crystal size distribution of grown seeds [37].

1. Objective: To create a "seed chart" for identifying the critical seed concentration (C_s*) that suppresses secondary nucleation and produces a consistent, grown-seed product.

2. Methodology:

• Step 1: Prepare Saturated Solution. Prepare an aqueous solution of the target compound (e.g., potassium alum) saturated at a higher temperature (e.g., 35°C) [37].
• Step 2: Define Initial Supersaturation. Cool the solution to the operating temperature (e.g., 20°C) to establish a known initial supersaturation (e.g., ΔC_i = 5x10^-3 kg-hydrate/kg-free water) [37].
• Step 3: Systematically Vary Seed Parameters. Conduct a series of batch trials with different seed sizes and, crucially, different seed concentrations (C_s). Seed concentration is defined as the ratio of the mass of seeds added to the maximum theoretical crystal yield from the batch [37].
• Step 4: Analyze Product Crystal Size Distribution. For each experiment, measure the final Crystal Size Distribution (CSD) of the product crystals.
• Step 5: Construct the Seed Chart. For each trial, calculate the mean mass size of the product crystals normalized by the original seed size. Plot this normalized product size against the seed concentration (C_s), with seed size as a parameter [37].
• Step 6: Identify Critical Seed Concentration. The critical seed concentration (C_s*) is identified on the chart as the point where the normalized product size becomes independent of C_s. At and above this concentration, the product CSD is unimodal and consists of grown seeds, indicating suppressed secondary nucleation [37].

Workflow Visualization

The following diagram illustrates the logical workflow for developing a seeding protocol, integrating the measurement of secondary nucleation and the establishment of a seeding policy.

Diagram 1: Seeding Protocol Development Workflow

In the pursuit of consistent crystal quality for pharmaceutical proteins, seeding has long been a cornerstone strategy in batch crystallization research. This application note transitions the established single-crystal seeding approach from batch into the domain of Continuous Slug Flow Crystallizers (CSFC), detailing the first comprehensive protocols for its implementation. Seeding in CSFC enables superior control over the Crystal Size Distribution (CSD) by operating at supersaturation levels below the metastable zone limit, effectively suppressing spontaneous nucleation [46]. This document provides the essential experimental data, methodologies, and reagent specifications to implement and optimize this advanced technique.

Comparative Performance: CSFC vs. Batch Crystallization

Evaluations using lysozyme (LYZ) as a model protein reveal distinct performance trade-offs between batch and CSFC platforms. The tables below summarize key quantitative findings.

Table 1: Comparative Performance of Seeded Crystallization in CSFC vs. Batch Crystallizer [46]

Performance Metric	Continuous Slug Flow Crystallizer (CSFC)	Batch Crystallizer
Average Crystal Size	Similar	Similar
Crystal Morphology	Well-defined tetragonal (at low flow rates)	Tetragonal
CSD Width & Reproducibility	Significantly improved	Broader, lower reproducibility
Lysozyme Bioactivity	Maintained	Maintained
Space-Time-Yield (STY)	~50% lower	Higher
Primary Operating Challenge	Trade-off between crystal quality and flow rate; seed transport at low flow	High-shear environment promoting secondary nucleation

Table 2: Impact of CSFC Operating Parameters on Crystal Quality and Yield [46]

Operating Parameter	Effect on Crystal Quality	Effect on Crystallization Efficiency (STY)
Low Flow Rate (Reduced shear, prolonged residence time)	Well-defined large tetragonal crystals; suppressed secondary nucleation	Lower STY due to difficulty in transporting seeds and product crystals
High Flow Rate	Increased production of small, non-tetragonal crystals that form agglomerates	Higher STY

Experimental Protocols

Protocol 1: Preparation of Lysozyme Seed Crystals

This protocol describes the generation of small, non-agglomerated seed crystals suitable for CSFC operations [47] [46].

Key Reagent Solutions:

• Model Protein: Lysozyme (LYZ) from chicken egg white (purity ≥ 90%, activity ≥ 20,000 units/mg).
• Precipitant Solution: Sodium chloride (NaCl) dissolved in a sodium acetate (NaOAc) buffer.
• Buffer: 100 mM sodium acetate buffer, pH 4.5.

Methodology:

• Seed Crystallization: Dissolve LYZ at 100 mg/mL in 100 mM sodium acetate buffer. Add a precipitant solution of NaCl to the LYZ solution to induce crystallization in a stirred tank crystallizer (STC) [46].
• Seed Harvesting: After 48 hours of batch crystallization, harvest the crystals. The target seed characteristics are an average size (d~ave~) of approximately 2.8 ± 0.9 μm and a narrow CSD (Span value ~1.02) [46].
• Alternative Seed Generation (Advanced): For a more controlled and consistent seed source, utilize a gapped Kenics Tubular Crystallizer (gKTC). This device generates small, non-agglomerated seeds under continuous flow conditions, avoiding the denaturation risks associated with traditional milling of protein crystals [47].

Protocol 2: Seeded Crystallization in a CSFC

This protocol outlines the setup and execution of a seeded crystallization experiment within a CSFC, using the seeds from Protocol 1.

Key Reagent Solutions:

• Protein Solution: Lysozyme dissolved in appropriate buffer.
• Precipitant Solution: Sodium chloride in sodium acetate buffer.
• Seed Slurry: Prepared as described in Protocol 1.
• Segmentation Fluid: Filtered air.

Methodology:

• System Setup: Configure the CSFC system with an upstream continuous stirred-tank reactor (CSTR) to facilitate the steady introduction of seed crystals into the liquid flow. Direct introduction into the CSFC tubing can cause unsteady slug flow [46].
• Solution and Seed Mixing: Continuously feed the LYZ solution and precipitant stream into the CSTR. Simultaneously, introduce the seed crystal slurry into the CRISTA. The high-shear environment of the CRISTA promotes effective mixing of seeds with the supersaturated solution [46].
• Slug Flow Generation: Direct the mixed suspension from the CSTR into the CSFC tubing. Introduce filtered air via a T- or Y-mixer to segment the liquid into discrete slugs. Ensure the tubing material (e.g., perfluoroalkoxy alkane (PFA)) has a high three-phase contact angle to promote a convex slug shape, which inhibits wall film formation and ensures a narrow residence time distribution [48].
• Crystallization Run: Maintain the CSFC in a temperature-controlled environment. The residence time is determined by the tubing length and the total volumetric flow rate. The flow rate must be optimized to balance crystal growth (longer residence time at low flow) against productivity and clogging risks (higher flow) [46] [48].
• Product Collection: Collect the slurry exiting the CSFC. Separate the crystals from the mother liquor via filtration, washing with a solvent like ethanol to remove residual impurities, and dry for analysis [7].

Diagram 1: Experimental workflow for seeded CSFC.

The Scientist's Toolkit: Essential Research Reagents & Materials

Table 3: Key Research Reagent Solutions for Seeded Protein Crystallization in CSFC

Reagent/Material	Function & Importance in Protocol	Example Specification / Note
Lysozyme (LYZ)	Model therapeutic protein for process development and optimization.	Purity ≥ 90%, activity ≥ 20,000 units/mg [46].
Sodium Acetate Buffer	Provides a stable pH environment crucial for protein stability and crystallization kinetics.	100 mM concentration, pH 4.5 [46].
Sodium Chloride (NaCl)	Acts as a precipitant to reduce protein solubility and induce supersaturation.	Dissolved in sodium acetate buffer [46].
Seed Beads	For crushing macro-crystals into micro-seeds to create homogeneous seed stocks.	Used in seed stock preparation protocol [19].
Segmentation Fluid (Air)	An immiscible fluid used to create the segmented slug flow pattern within the CSFC.	Must be filtered [46] [48].
Tubing Material (PFA)	The construction material for the CSFC loop. Surface properties affect slug stability and fouling.	High three-phase contact angle promotes convex slug shape [48].

Process Modeling and Optimization Insights

Mechanistic modeling of CSFC processes is a powerful tool for predicting outcomes and reducing experimental effort. A robust model treats each liquid slug as an individual, well-mixed batch crystallizer moving along the tube length [48]. The core of this model is a Population Balance Equation (PBE) that tracks the evolution of the Crystal Size Distribution (CSD), incorporating crystal growth and agglomeration phenomena [48].

Diagram 2: CSFC modeling logic and relationships.

The optimization of the final CSD is highly dependent on the choice of the objective function used in control strategies. Research shows that objective functions based on volume-weighted density distribution and higher-order moments promote a "late-growth" strategy, resulting in larger crystals and effectively reducing the volume of nucleated material [5]. This insight is directly applicable to designing control policies for CSFCs to achieve target product properties.

Polymorph control remains a significant challenge in pharmaceutical development, as the crystalline form of an active pharmaceutical ingredient (API) directly impacts its solubility, stability, and bioavailability [49]. Seeding, the practice of introducing pre-formed crystals to direct the polymorphic outcome of a crystallization process, is a established strategy to circumvent this obstacle [49]. Recent research has demonstrated that crystals grown in the microgravity environment of space provide an optimal template for terrestrial seeding, offering unprecedented control over polymorph formation [49] [50].

Microgravity, a condition of near-weightlessness experienced aboard the International Space Station (ISS), fundamentally alters crystal growth dynamics by suppressing convective currents, buoyancy, and sedimentation [51]. This results in crystals that are larger, more uniform, and structurally superior compared to their Earth-grown counterparts [49] [52]. Furthermore, microgravity can facilitate the formation of metastable polymorphs that are difficult or impossible to obtain under terrestrial conditions, providing new opportunities for drug formulation [49]. This Application Note details the use of microgravity-grown crystals as seeds for consistent polymorphic control across multiple generations of crystal growth.

Theoretical Background: Why Microgravity Produces Superior Seeds

The Microgravity Advantage

On Earth, gravity-driven phenomena interfere with the crystal growth process. Convection currents cause non-uniform nutrient delivery to growing crystal surfaces, while sedimentation leads to defect formation and irregular crystal shapes [52]. In microgravity, these forces are markedly reduced, leading to a growth environment dominated by diffusion.

• Reduced Convection: The absence of buoyancy-driven convection in microgravity creates a stagnant solution around the growing crystal. This allows for a steady, diffusion-limited supply of molecules, facilitating more orderly incorporation into the crystal lattice and resulting in higher internal order and perfection [52].
• Elimination of Sedimentation: In space, crystals remain suspended in solution, free from the mechanical stresses and aggregation that can occur when they settle on a container's surface [51]. This contributes to the formation of crystals with fewer defects and more uniform morphology.

Implications for Polymorph Control and Seeding

The structural perfection of microgravity-grown crystals makes them exceptionally effective seeds. A high-quality seed crystal presents a template with a well-ordered, low-energy surface that promotes the continued, epitaxial growth of the same polymorphic form. By providing a superior template, microgravity-grown seeds can reliably direct crystallization toward a desired polymorph, even for pharmaceuticals with complex polymorphic landscapes like carbamazepine and atorvastatin calcium [49].

Experimental Evidence and Quantitative Data

Key Findings from Microgravity Seeding Studies

A seminal study investigated the use of microgravity-grown single crystals as seeds for multiple generations of crystal growth for carbamazepine and atorvastatin calcium [49]. The research yielded several critical findings, quantified in the table below.

Table 1: Summary of Key Experimental Findings from Microgravity Seeding Studies

Aspect Investigated	Finding	Quantitative Result / Implication
Polymorph Access	Microgravity can yield different polymorphs than ground studies under identical conditions.	Provides access to novel or metastable forms with potentially improved drug delivery properties [49].
Seeding Efficacy	Microgravity-grown crystals are excellent seeds for subsequent terrestrial crystallization.	Successful polymorph propagation was demonstrated for up to 10 generations of crystal growth [49] [50].
Processed Compounds	Methodology validated on multiple, relevant pharmaceutical compounds.	Successful application with carbamazepine and atorvastatin calcium (which has at least 15 known polymorphs) [49].

Hardware and Experimental Platform

The experiments were conducted using the Pharmaceutical In-space Laboratory (PIL) – Biocrystal Optimization eXperiment (BOX) hardware aboard the ISS [49]. This platform utilizes fluid loops within a cassette that is operated in the ADvanced Space Experiment Processor (ADSEP). The process involves injecting an antisolvent from a syringe into a crystallization chamber containing the API solution, with the entire process observed via microscope and recorded [49].

Application Protocols

This section provides detailed methodologies for implementing microgravity-grown seeds in terrestrial crystallization processes.

Protocol 1: Generating Microgravity-Grown Seed Crystals

Objective: To produce high-quality seed crystals of a target API in a microgravity environment. Materials: API (e.g., carbamazepine, atorvastatin calcium), high-purity solvents, PIL-BOX SMALS hardware, ADSEP facility on the ISS.

• Solution Preparation: Prepare a saturated or near-saturated solution of the API in a suitable solvent (e.g., chromatography grade ethanol, dimethylformamide) [49].
• Hardware Loading: Load the API solution into the reaction chamber of the PIL-BOX fluid loop. Load the appropriate antisolvent (e.g., water, ethyl acetate) into syringe B of the fluid loop [49].
• In-Orbit Execution: Once on the ISS, an astronaut installs the cassette into the ADSEP. The antisolvent is injected into the crystallization chamber over approximately 3 minutes at a controlled temperature (e.g., 22°C) [49].
• Crystallization and Observation: Crystallization is monitored via video. The hardware remains in the ADSEP for a set period (e.g., 2 days) to allow for crystal growth [49].
• Return and Recovery: The crystals, suspended in their solvent mixture, are returned to Earth. Crystals are carefully extracted from the crystallization chamber and the overflow syringe for analysis [49].

Protocol 2: Terrestrial Seeding for Multi-Generational Polymorph Control

Objective: To use returned microgravity-grown seeds to propagate the desired polymorph over multiple generations in a standard laboratory batch cooling crystallization system. Materials: Microgravity-grown seed crystals, API, solvents, batch crystallizer equipped with temperature control and agitation, analytical tools (XRPD, Raman spectroscopy).

• Seed Preparation: Gently isolate and characterize the returned microgravity-grown crystals using techniques like X-ray Powder Diffraction (XRPD) to confirm the polymorphic form. Size-reduce the seeds, if necessary, to a consistent and appropriate size for seeding.
• Establish Saturation: In the batch crystallizer, prepare a solution of the API and heat it to a temperature that ensures complete dissolution. Use the solubility curve to determine the saturation temperature.
• Generate Supersaturation: Cool the solution to a temperature within the metastable zone to create a supersaturated environment conducive to growth but not spontaneous nucleation.
• Inoculate with Seeds: Introduce a precise amount of the characterized microgravity-grown seeds into the supersaturated solution. This provides the template for growth.
• Optimized Growth Cycle: Execute a controlled cooling profile, potentially incorporating temperature-swing strategies, to maintain a constant, moderate level of supersaturation. This maximizes growth on the seeds while minimizing secondary nucleation [21].
• Harvest and Analysis: Collect the final crystals. Analyze them with XRPD to verify the polymorphic identity and consistency with the seed form.
• Propagate Generations: Use a portion of the harvested crystals (now the first terrestrial generation) as seeds to initiate the next crystallization batch, repeating steps 2-6. Studies confirm this can be successfully repeated for multiple generations [49].

Protocol 3: Hypergravity Screening for Feasibility Assessment

Objective: To rapidly and cost-effectively assess a molecule's sensitivity to gravity and its potential to benefit from microgravity processing before committing to a space mission. Materials: API, Varda's hypergravity platform or equivalent, commercial crystallization hardware (e.g., Crystal16, EasyMax).

• Terrestrial Process Characterization: Develop a baseline crystallization process and analyze the resulting crystals using standard solid-state (XRPD, DSC) and particle characterization (laser diffraction) methods [51].
• Hypergravity Testing: Conduct parallel crystallization experiments using the same process parameters but under varying hypergravity conditions (e.g., 2g, 3g, 4g, 5g) [51].
• Data Analysis: Quantify gravity-dependent performance metrics, such as particle size distribution and polymorph ratio, as a function of gravity. A strong correlation indicates that the crystallization is highly sensitive to gravity, making it a prime candidate for microgravity experimentation [51].
• Process Modeling: Develop process models that incorporate gravity as a variable to predict the potential impact of microgravity on the final drug properties [51].

The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Materials and Reagents for Microgravity Seeding Research

Item / Reagent	Function / Application	Example from Research
Pharmaceutical Compounds	Model compounds for studying polymorph control.	Carbamazepine, Atorvastatin Calcium, DL-methionine, Glutamic Acid [49].
High-Purity Solvents & Antisolvents	To create API solutions and induce crystallization via antisolvent addition.	Ethanol, Dimethylformamide, Dichloromethane, Ethyl Acetate, Ultrapure Water [49].
PIL-BOX SMALS Hardware	Specialized platform for performing crystallization experiments on the ISS.	Fluid loops with injection syringes and an observation chamber for crystal growth [49].
Hypergravity Crystallization Platform	Enables rapid, ground-based assessment of gravity's impact on crystallization.	Varda's platform for unit operations under hypergravity to de-risk space experiments [51].
In-situ Process Analytical Technology (PAT)	For real-time monitoring of crystallization kinetics.	Video microscopy, Raman, and infrared sensors to map process windows [51].

Workflow and Decision Pathway

The following diagram illustrates the integrated workflow for developing a crystallization process using microgravity-grown seeds, from initial feasibility assessment to terrestrial manufacturing.

The use of microgravity-grown crystals as seeds represents a paradigm shift in the control of pharmaceutical polymorphism. The evidence demonstrates that this approach can provide access to specific polymorphic forms and ensure their consistent propagation over multiple generations in terrestrial manufacturing. By integrating hypergravity screening and optimized batch control strategies, researchers can systematically leverage the unique environment of space to develop superior pharmaceutical products with enhanced properties, ultimately contributing to more effective and reliable drug therapies.

Conclusion

The single crystal seeding approach is a powerful and indispensable strategy in modern crystallization science, transforming it from an unpredictable art into a controlled, engineering-driven process. By providing a foundational understanding of secondary nucleation, practical and reproducible methodologies, and robust troubleshooting frameworks, this technique directly addresses the pharmaceutical industry's critical needs for consistent polymorphic form, desired particle size distribution, and enhanced product stability. The comparative data unequivocally validates that seeding leads to superior crystal quality, improved process reproducibility, and higher yields compared to unseeded operations. Future directions point toward the integration of seeding with continuous manufacturing platforms, the application of AI and machine learning for predictive protocol design, and the exploration of novel seed sources—such as microgravity-grown crystals—to access previously inaccessible polymorphs. For biomedical and clinical research, the reliable production of the correct API solid form through seeding is not merely a manufacturing concern but a fundamental prerequisite for ensuring drug safety, predictable bioavailability, and ultimate therapeutic efficacy.

References

• 1. Developing seeding protocols through secondary ... [https://www.crystallizationsystems.com/news/developing-seeding-protocols-through-secondary-nucleation-measurements-on-the-crystalline/]
• 2. Understand seeding through secondary nucleation ... [https://www.crystallizationsystems.com/news/understand-seeding-through-secondary-nucleation-measurements-with-the-crystalline-instrument/]
• 3. Secondary nucleation and growth of organic crystals in ... [https://www.sciencedirect.com/science/article/abs/pii/S0022024804016689]
• 4. Process Analytical Technology Obtained Metastable Zone ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC11944372/]
• 5. Optimization of crystal size distribution concerning ... [https://www.sciencedirect.com/science/article/abs/pii/S0032591025007983]
• 6. Estimation of metastable zone width in different nucleation ... [https://www.sciencedirect.com/science/article/abs/pii/S0009250900004504]
• 7. Study on the effect of ammonium (NH 4 + ) as impurity and ... [https://www.nature.com/articles/s41598-025-02138-0]
• 8. Crystallization platform | Crystalline [https://www.crystallizationsystems.com/products/crystalline/]
• 9. Seeding - Terese Bergfors [https://xray.teresebergfors.com/seeding/]
• 10. Protein Crystallization Software - ROCK MAKER® [https://formulatrix.com/protein-crystallization-systems/rock-maker-protein-crystallization-software/]
• 11. A practical guide to pharmaceutical polymorph screening & ... [https://www.sciencedirect.com/science/article/pii/S1818087614000245]
• 12. Impact of Excipients and Seeding on the Solid-State Form ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC9542716/]
• 13. Thermodynamic vs. Kinetic Basis for Polymorph Selection [https://www.mdpi.com/2227-9717/7/5/272]
• 14. Do metastable polymorphs always grow faster? Measuring ... [https://pubs.rsc.org/en/content/articlehtml/2023/sc/d3sc02040a]
• 15. 5 Protein Crystallization Seeding Methods for Bigger Crystals [https://bitesizebio.com/59302/protein-crystallization-seeding/]
• 16. Improving the Success Rate of Protein Crystallization by ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC3857131/]
• 17. Making Seed Stock – Biomolecular Crystallisation and ... [https://research.csiro.au/crystal/biomolecular-crystallisation-and-characterisation/guides/c3-making-seed-stock/]
• 18. MMS Procedure [https://www.douglas.co.uk/MMS_proc.htm]
• 19. Crystal-seeding [https://www.diamond.ac.uk/Instruments/Mx/Fragment-Screening/Troubleshooting-Tips-Tricks/Crystal-seeding.html]
• 20. Streak Seeding Protocol [https://mol-xray.princeton.edu/xray0/Guides/StreakSeeding.html]
• 21. Optimization of batch cooling crystallization systems ... [https://www.sciencedirect.com/science/article/abs/pii/S1674200124002189]
• 22. - MMS Microseed Matrix Screening [https://www.douglas.co.uk/mms.htm]
• 23. Microseed matrix screening for optimization in protein ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC4157405/]
• 24. Microseed matrix screening for optimization in protein ... [https://pubmed.ncbi.nlm.nih.gov/25195878/]
• 25. Video: Improving the Success Rate of Protein Crystallization by... [https://www.jove.com/v/50548/improving-success-rate-protein-crystallization-random-microseed]
• 26. Protein Crystallography Techniques | SPT Labtech [https://www.sptlabtech.com/applications/structural-biology/protein-crystallography]
• 27. Pharmaceutical Co-Crystallization: Regulatory Aspects, ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC7191238/]
• 28. Crystal engineering considerations for pharmaceutical co ... [https://pubs.rsc.org/lt/content/articlehtml/2025/ce/d5ce00820d?page=search]
• 29. Getting crystals your crystallographer will treasure [https://journals.iucr.org/paper?oi2022]
• 30. Screening for Polymorphism, Cyclodextrin Complexation, and ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC12297964/]
• 31. Overcoming the Hydrophobic Nature of Zinc Phenylacetate ... [https://www.sciencedirect.com/science/article/abs/pii/S0022354923000989]
• 32. from batch-based ball-milling to scale-up ready hot melt ... [https://www.sciencedirect.com/science/article/pii/S0378517325011330]
• 33. Study on the effect of ammonium (NH4+) as impurity and ... [https://pubmed.ncbi.nlm.nih.gov/40425639/]
• 34. Kinetic properties of solventing out crystallization ... [https://www.sciencedirect.com/science/article/pii/S2772656822000483]
• 35. Evaporating crystallization effect of ammonium sulfate at ... [https://www.sciencedirect.com/science/article/pii/S1350417724001445]
• 36. Effect of impurity ions on the primary nucleation ... [https://www.sciencedirect.com/science/article/abs/pii/S0032591020310226]
• 37. Seeding policy in batch cooling crystallization [https://www.sciencedirect.com/science/article/abs/pii/S0032591001003710]
• 38. Effects of different seed forms on crystal size distribution for ... [https://www.sciencedirect.com/science/article/abs/pii/S2214785323034892]
• 39. Effect of seeded surface area on crystal size distribution in ... [https://www.sciencedirect.com/science/article/abs/pii/S0022024804008371]
• 40. Seeding: A Simple but Effective Method for Crystallisation ... [https://catsci.com/library/seeding-a-simple-but-effective-method-for-crystallisation-control/]
• 41. Cooling Crystallization with Complex Temperature Profiles ... [https://www.mdpi.com/2227-9717/10/6/1047]
• 42. Theoretical Analysis of the Factors Determining the Crystal ... [https://www.mdpi.com/2073-4352/15/7/653]
• 43. Impact of aspect ratio and crystal size distribution of L-glutamic ... [https://pubs.rsc.org/en/content/articlehtml/2025/ra/d4ra05935b]
• 44. Quantitative design of seed load for solution cooling ... [https://www.sciencedirect.com/science/article/abs/pii/S138589470900672X]
• 45. Reduce Batch Cycle Time in Sugar Crystallization [https://www.trendminer.com/resources/achieve-a-12-percent-batch-cycle-time-reduction-for-sugar-crystallization]
• 46. Comparative evaluations of bulk seeded protein ... [https://www.sciencedirect.com/science/article/abs/pii/S0263876221002045]
• 47. Control of crystal size distribution in batch protein ... [https://www.sciencedirect.com/science/article/abs/pii/S0009250922006698]
• 48. Modeling of Continuous Slug Flow Cooling Crystallization ... [https://www.mdpi.com/2227-9717/11/9/2637]
• 49. Microgravity-Grown Crystals as Seeds for Pharmaceutical ... [https://www.mdpi.com/2073-4352/15/9/825]
• 50. Microgravity-Grown Crystals as Seeds for Pharmaceutical ... [https://www.scilit.com/publications/8cf97b7d00d0371dfd1f493454cf03c9]
• 51. Microgravity enables differentiated drug products [https://www.varda.com/biopharma/]
• 52. Microgravity protein crystallization - PMC - PubMed Central [https://pmc.ncbi.nlm.nih.gov/articles/PMC5515504/]
